Gang Based Estimating
Offset and Digital printing is not currently supported in this development.
The printIQ Gang module is required to access this functionality.
Custom Quoting
It is common with wide and large format work to require the quote to be based on a ‘gang style imposition’ onto sheets or rolls in order to get the best utilisation and costing. For this, you can use the ‘Gang’ based custom template option.

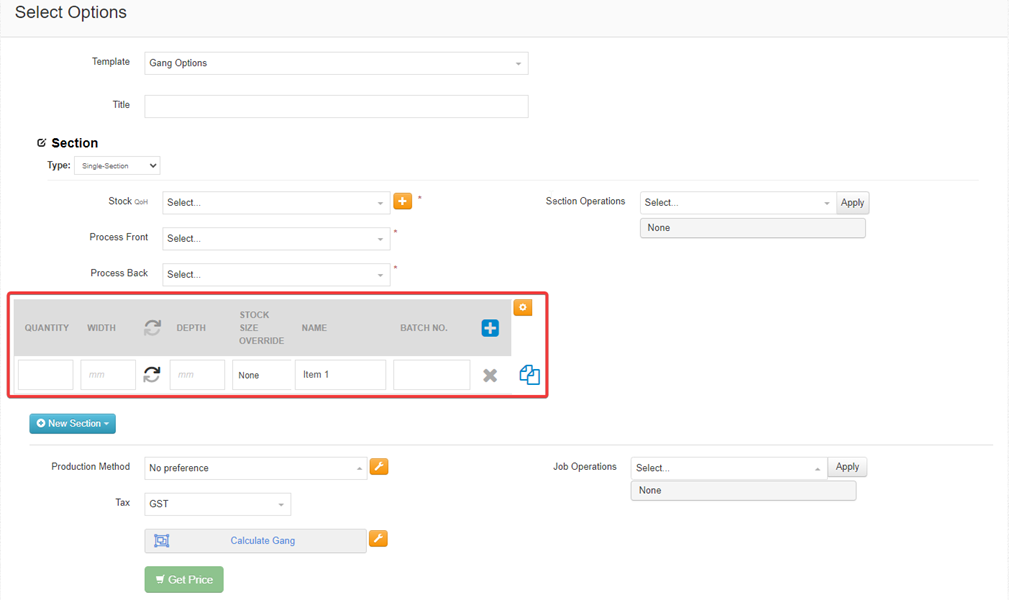

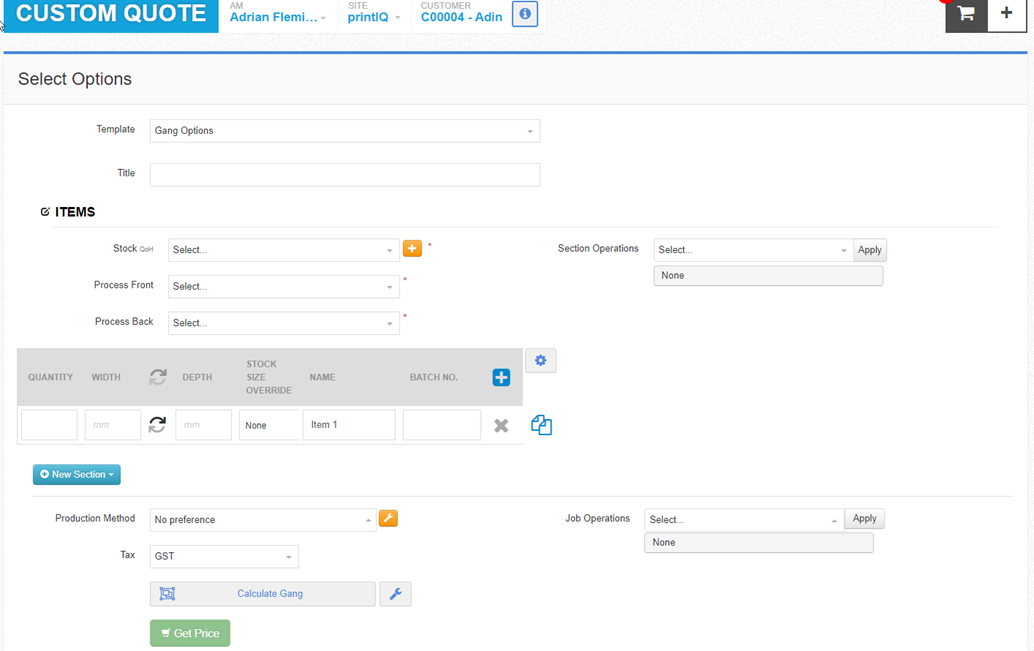

The gang-based template has an additional section for the individual ‘items’ and for their sizes and quantity to be entered:
Sheet based quoting
In this example we are quoting multiple items onto ‘sheet’ based stock.
When you select a stock, the ‘advanced’ modal will open. You are required to select a sheet size for the gang to be calculated against:
Select your front and back processes and add any required finishing operations:

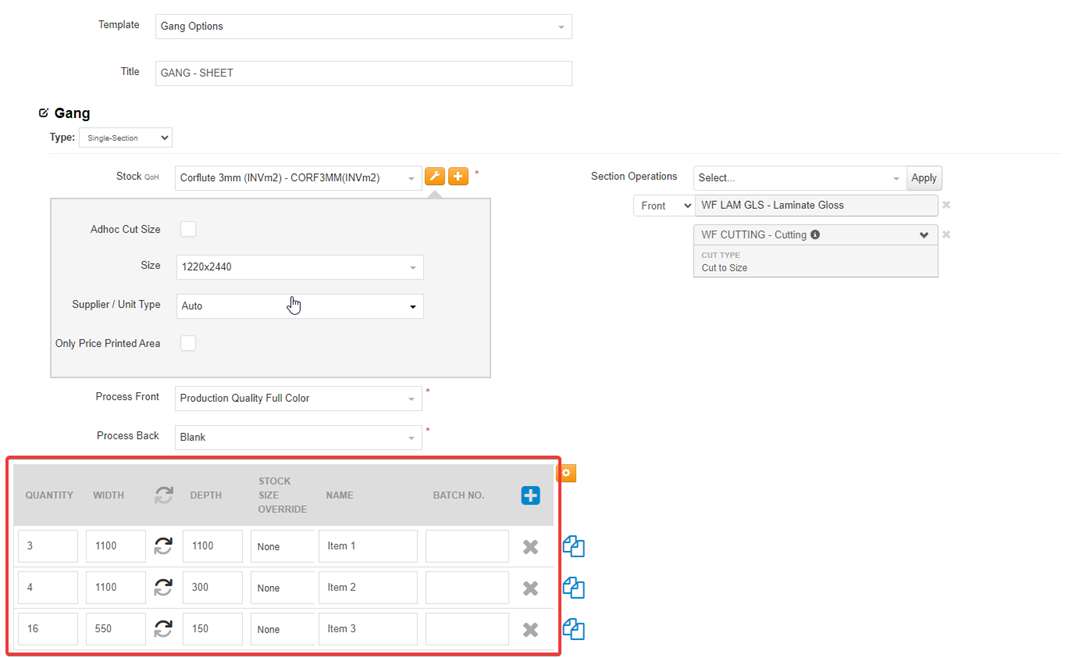

Enter the individual item quantities and finished sizes:

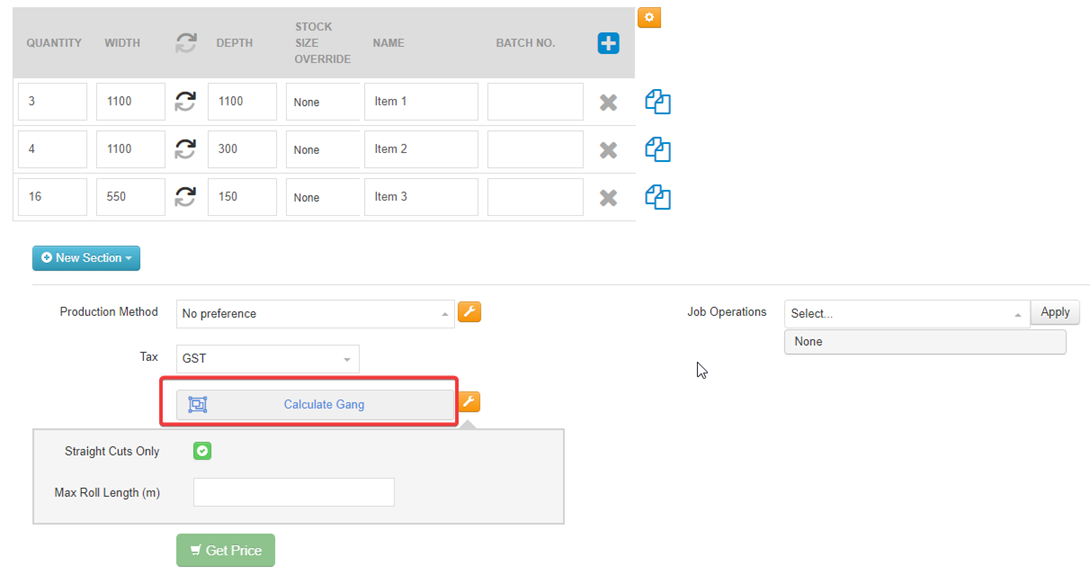

Once all the items are entered, click the ‘Calculate Gang’ button:
Straight Cuts Only
The first is ‘Straight cuts only’, this will place items as efficient as possible but always allowing a guillotine to make a full cut across the stock.
Second is without the straight cuts only option which will place item efficiently as it can without any restrictions on orientation or cutting. This is useful when linking up the cuts is not essential such as when laser cutting.
Both these options do not minimise the amount of runs currently, only stock used.
This will start running calculations on how the items can be imposed on the selected sheet size. This will also create imposition PDF files as a layout reference. The button will show a spinning wheel icon while this process is running:
Once complete, a modal will drop showing the gang splits. You will see the runs numbered on the left, followed by the stock name, stock size and qty of sheets required for the specific run. Click on the ‘arrow’ icon to see what items are contained on the run:

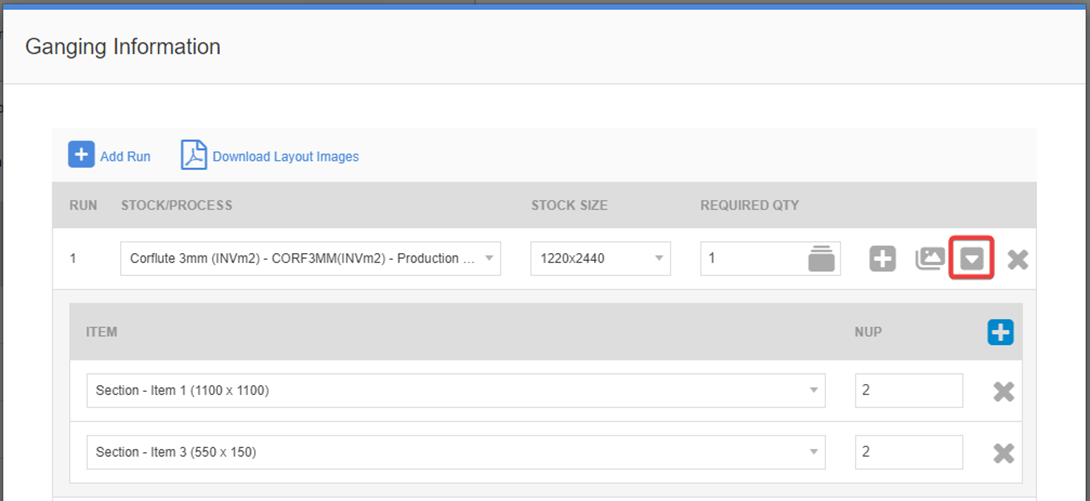

Click on the ‘arrow’ icon to see what items are contained on the run:

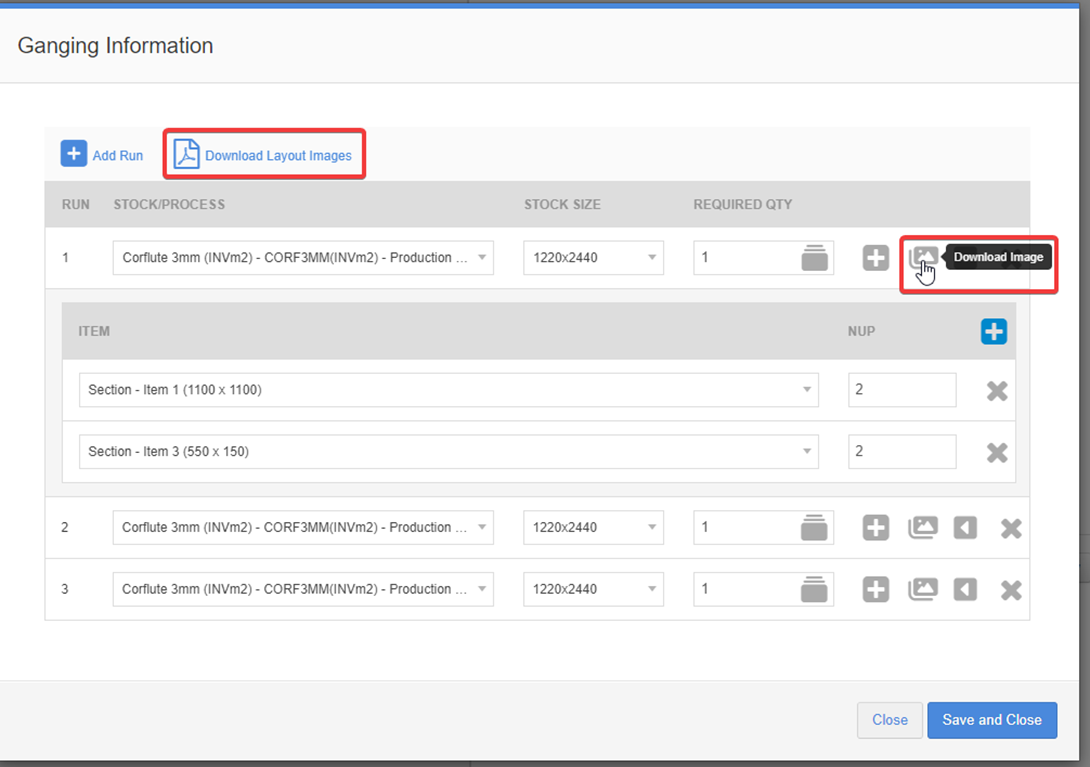

You can download and view PDF layouts:
The top ‘Download Layout Images’ will open all images. For this to work your browser must be set to allow popups:
Chrome:
Each run will have its own file:

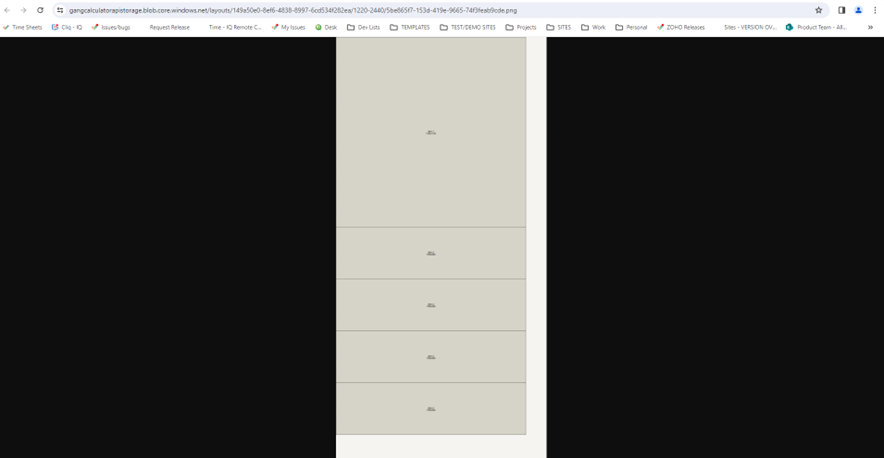

Run 1

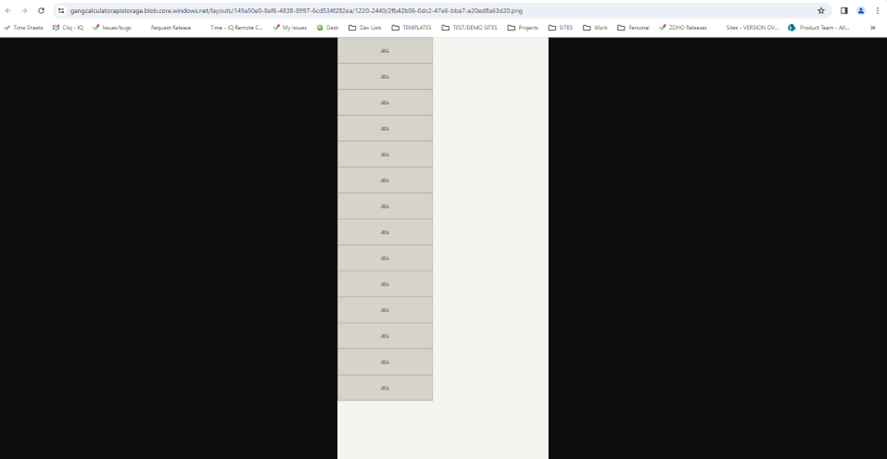

Run 2
Run 3

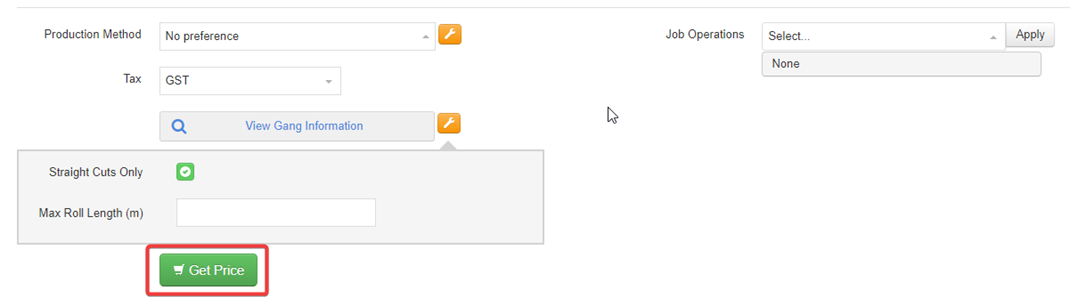

‘Save & Close’ the modal then click ‘Get Price’ to calculate the quote:
*SPLIT SHEET SIZES – In the above example, the last layout did not utilise a large area of the sheet.
In this case we want to split out the last run and gang it on a smaller sheet size.

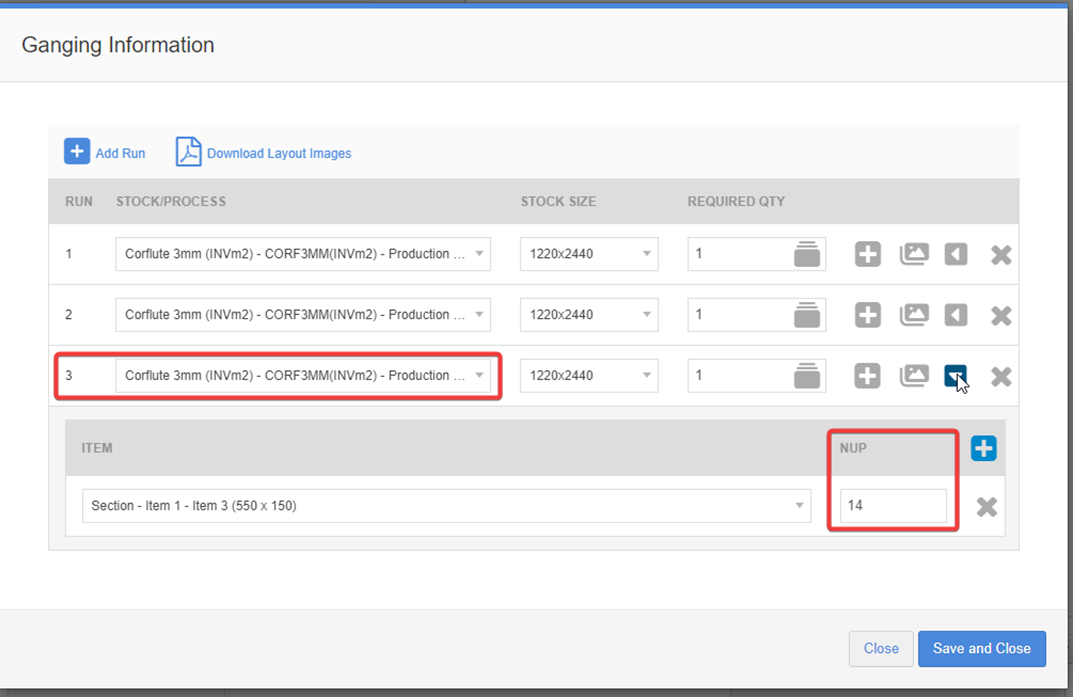

We can see that a qty of 14 of item 3 is imposed on the 1220x2440 sheet:

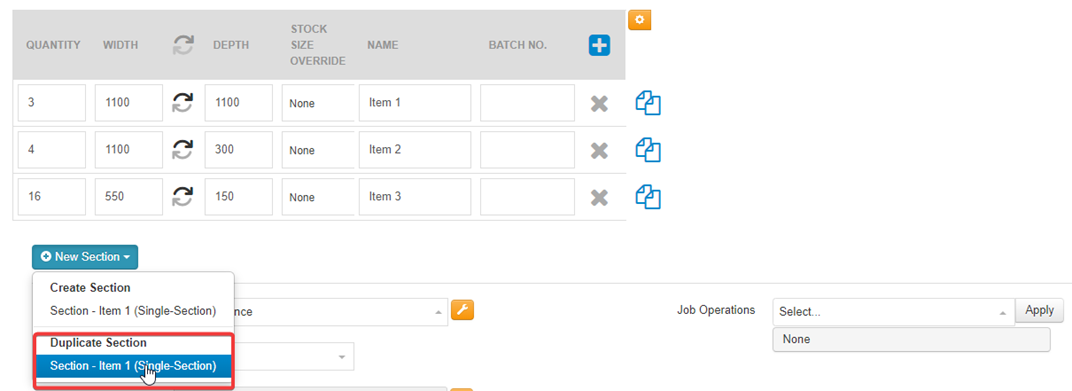

We want to split this qty of 14 off into its own ‘section’ so we can run the gang calculator again. Select to ‘duplicate’ the first section:
On the original section, change the qty of item 3 to ‘2’ and on the new section, enter item 3 details in again but at a qty of ‘14’. Also select a smaller sheet size for the second section:
Calculate the gang again:
The gang will be recalculated, placing the last imposition on the smaller sheet:

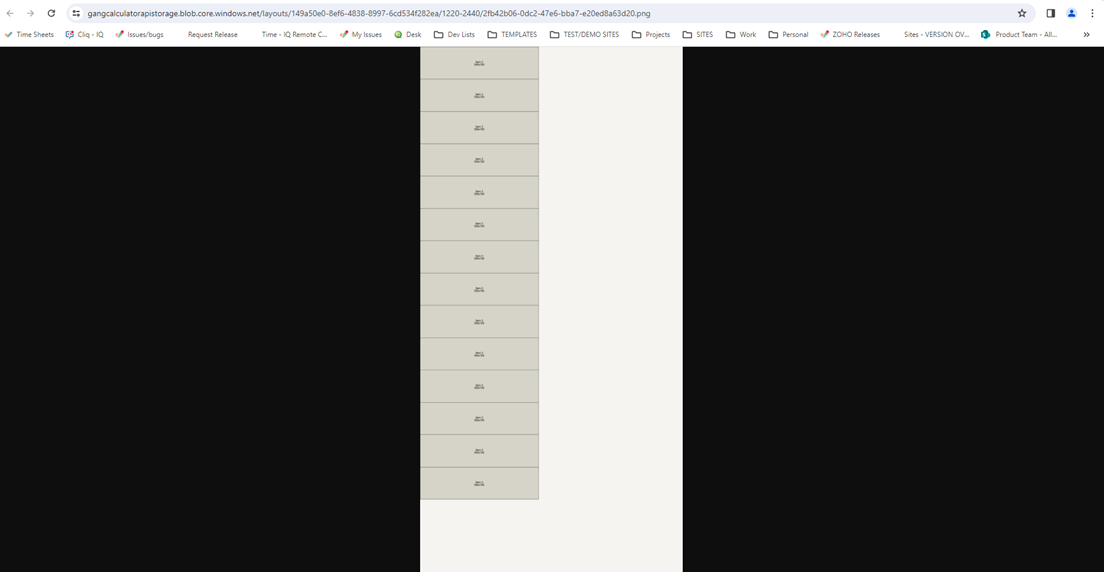

1220 x 1220 sheet:

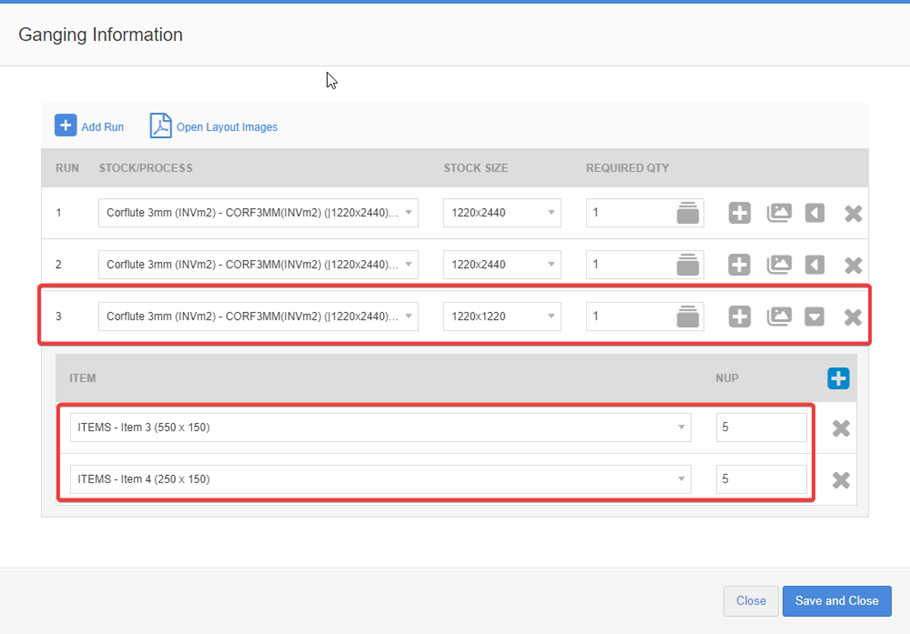

On recalculation, ‘Run 3’ will be on the smaller sheet size:
Roll based quoting

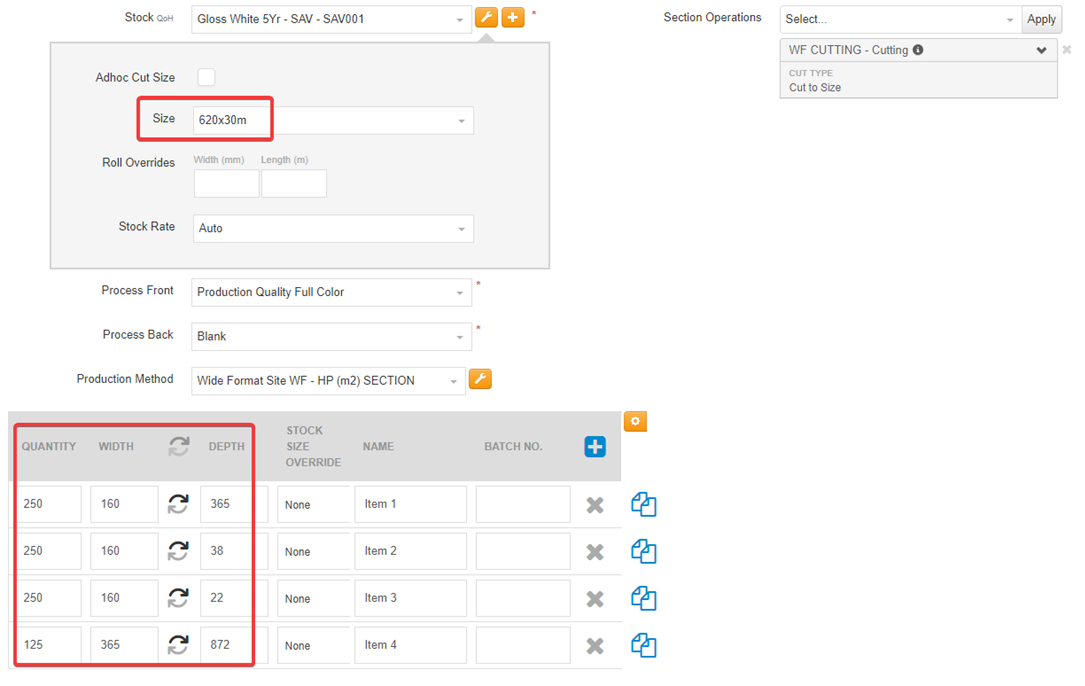

In this example we are quoting multiple items onto ‘roll’ based stock. The stock length is 30m:

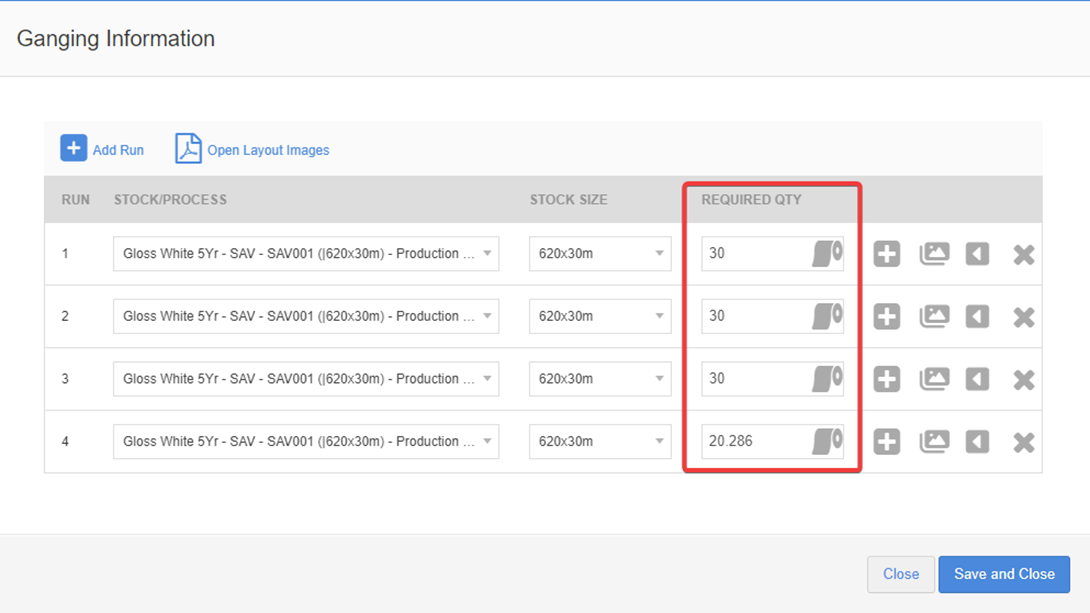

Once the gang is calculated, we have a split of x3 30m rolls with the last roll using 20.286m:
Production

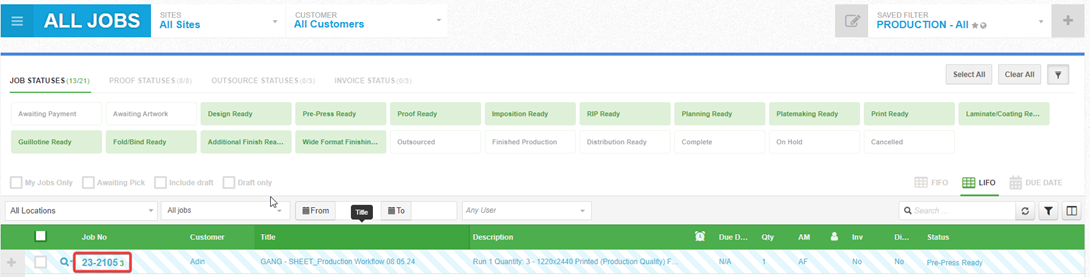

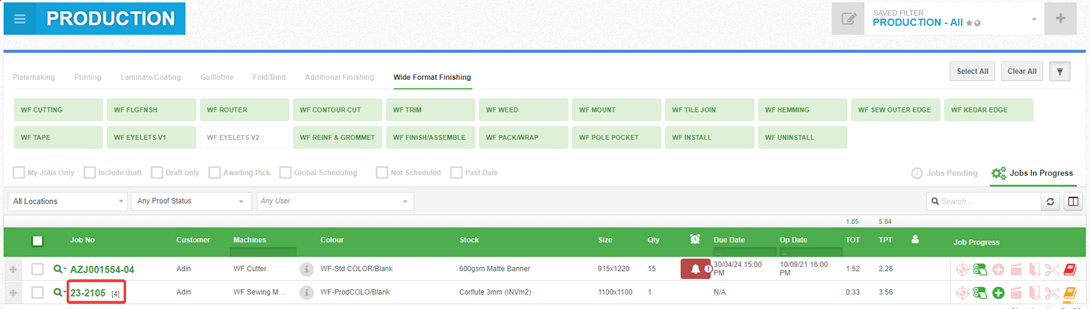

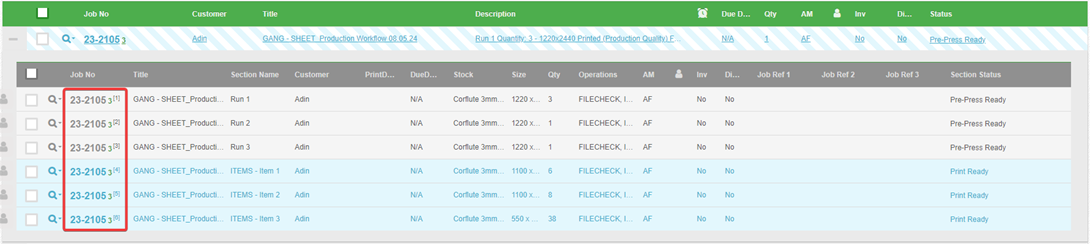

Once the quote is accepted into production, the job is created. It will show on the ‘All Jobs’ board as a cross hatched blue line indicating it is a gang job. It will show a number beside the job number that show how many gang ‘Runs’ are contained on the job:
Click on the ‘+’ button to view all runs and sections/items:

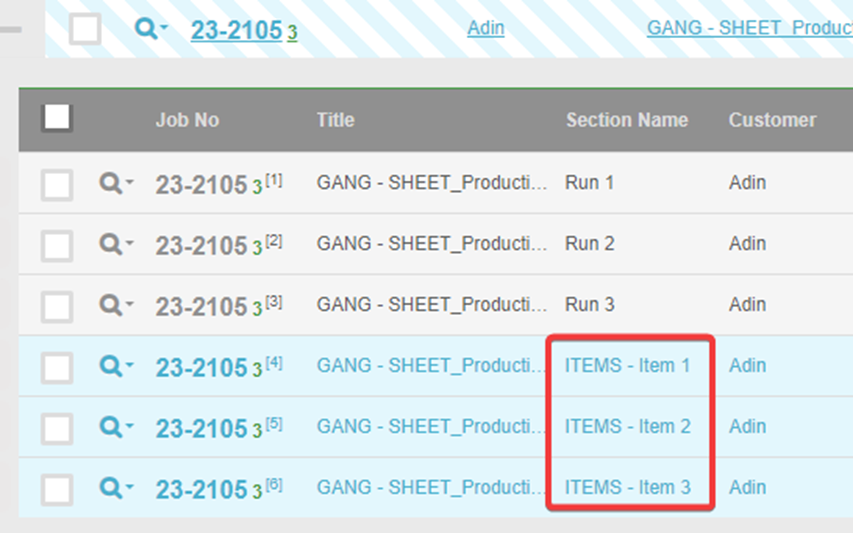

The ‘items’ on the gang runs will display in blue so they are visibly separated from the ‘runs’:
The job details screen will show the number of runs with each run below with its own start/stop and plannable operations:

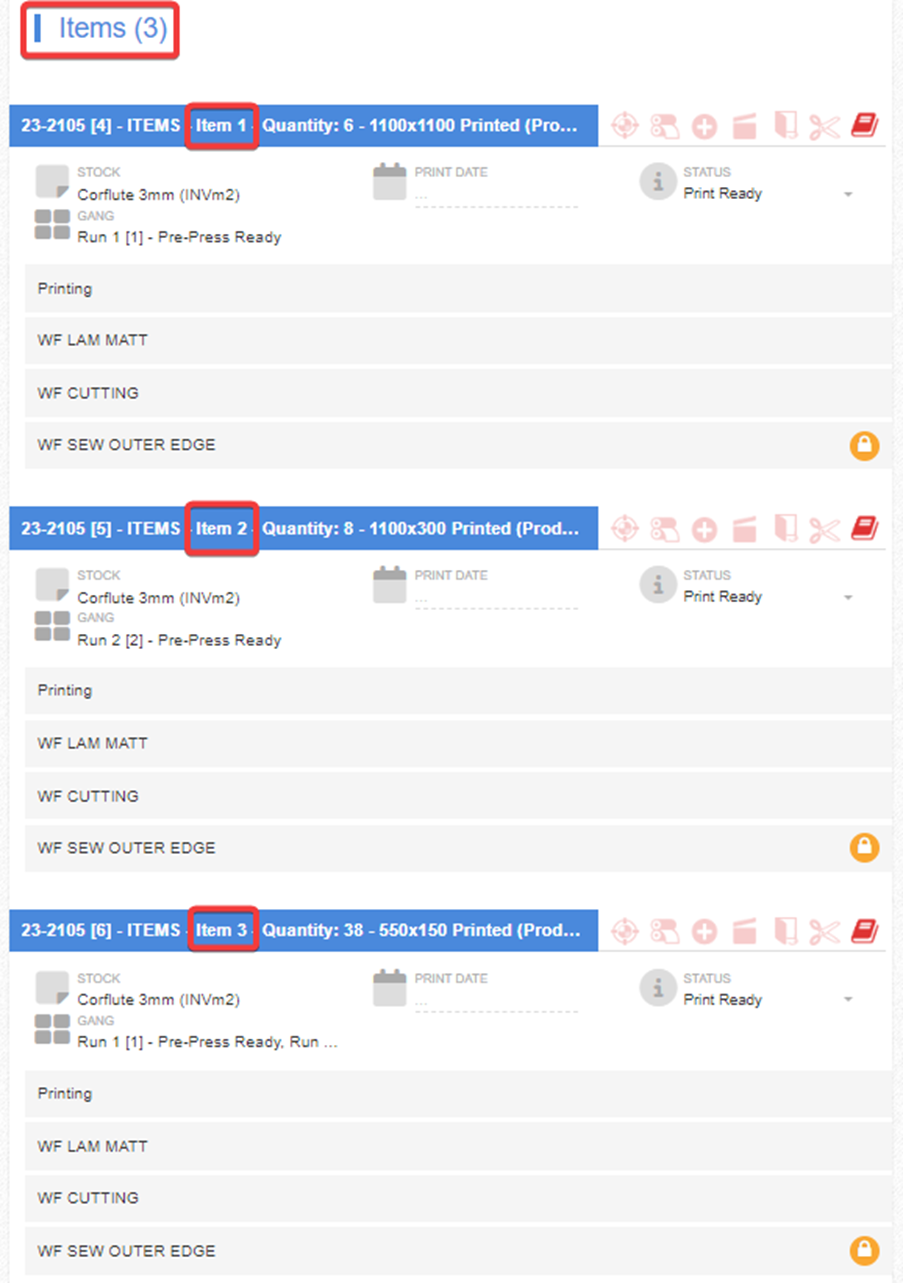

Below the runs will show the items:
The gang run based operations (Printing, Laminate, cutting, etc) will be shown on the section based ‘items’ are for display only (as this workflow requirement or printIQ), no time or cost is associated with them, and you will see they have no start/stop buttons.

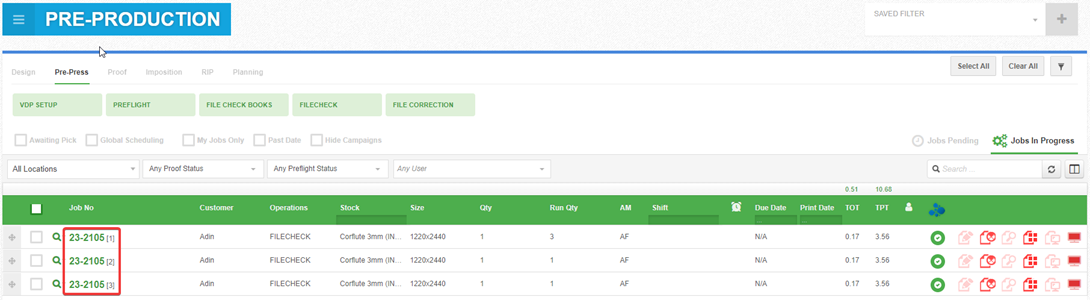

While the job is on the pre-production board, only the ‘Runs’ will show. The ‘Items’ are not displayed on the pre-production board:

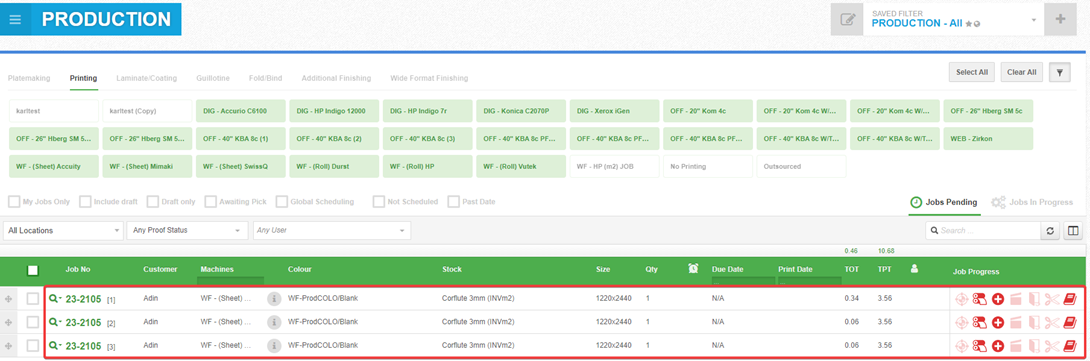

The gang-based sections only will display while they are in production. No item-based jobs will show until the gang ‘runs’ are finished production:

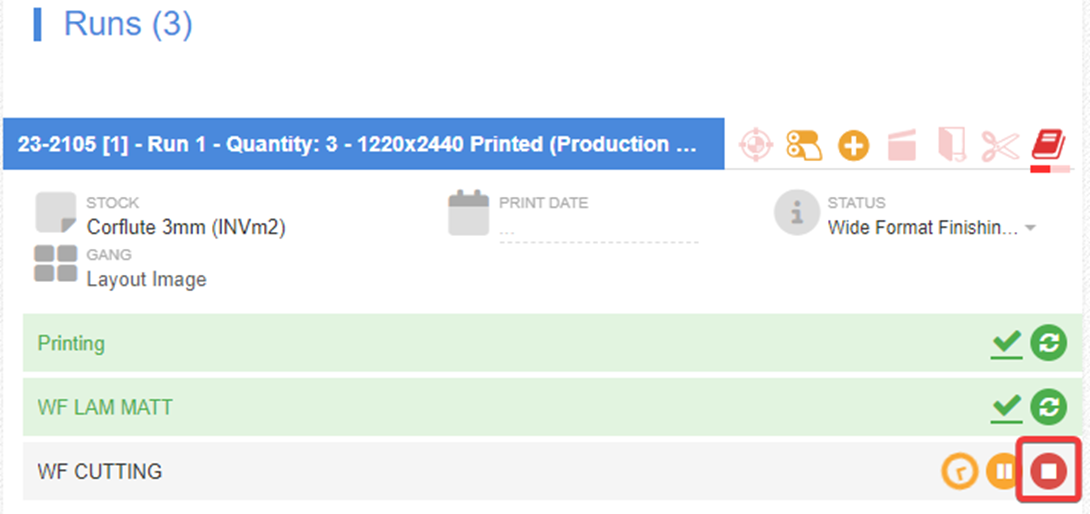

Once the last operation on one of the ‘runs’ is completed:

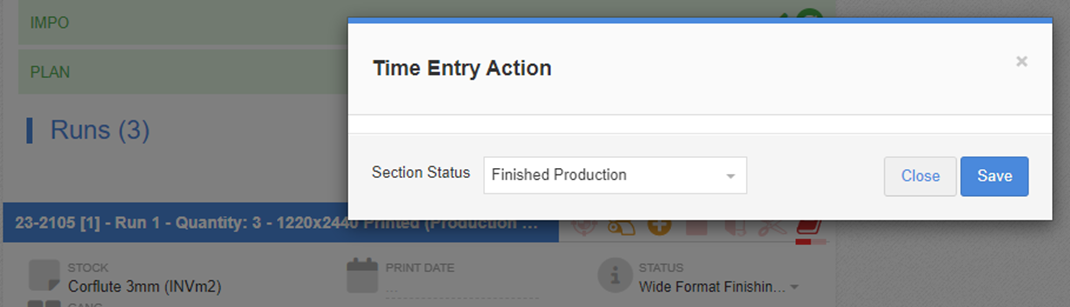

That individual run section will be marked as ‘Finished Production’:
This will release the ‘Item’ connected to that gang section off from the run. It will now display on the production board for any individual item-based finishing to now be worked on:

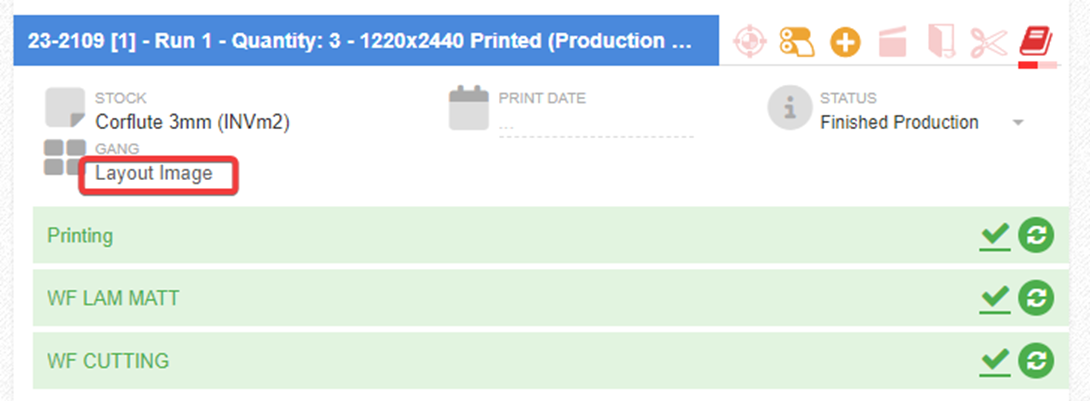

From the ‘Run’ section on the job details page, you can access the layout image by clicking on the ‘Layout Image’ text:
Options
Stock Size Override

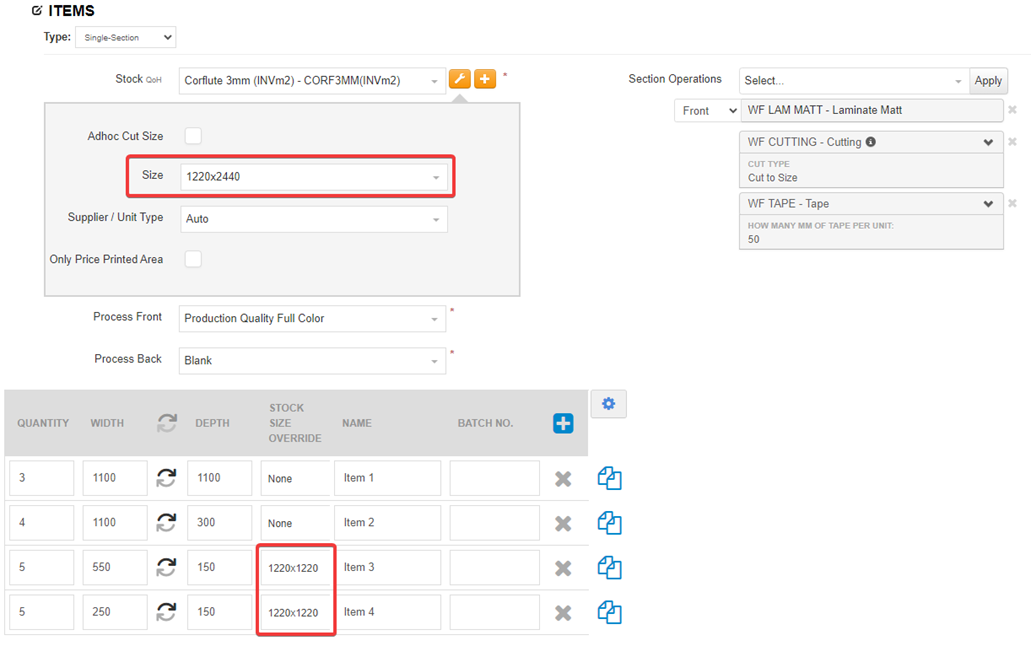

With this set to the default of ‘None’, all items will be calculated to gang together as best as possible on the master sheet size set. If you override any items with a different size:
These will be separated out from the other items and calculated ganged on their own on the selected sheet size:
‘Add’ items and manually change gangs

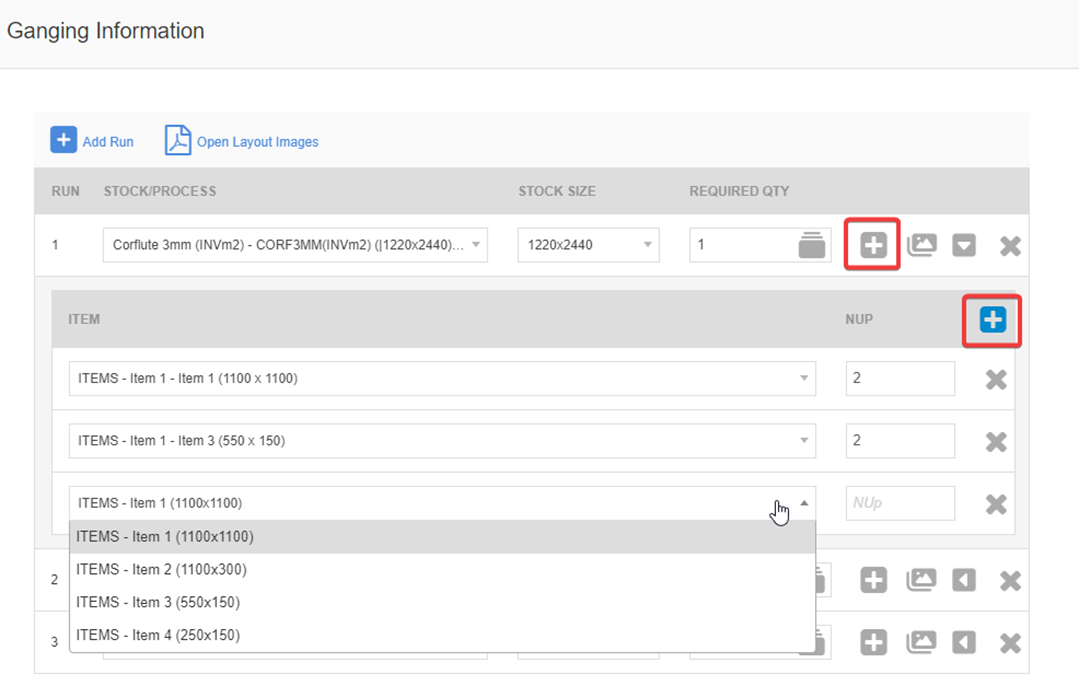

You can open a gang and manually override details such as Nup. Click the + button to add another item to the gang:
Any manual changes will not be reflected in the imposition pdf files.
Reset Gang Results
If you need to clear out the calculated gangs to start again, click the ‘Bin’ icon:

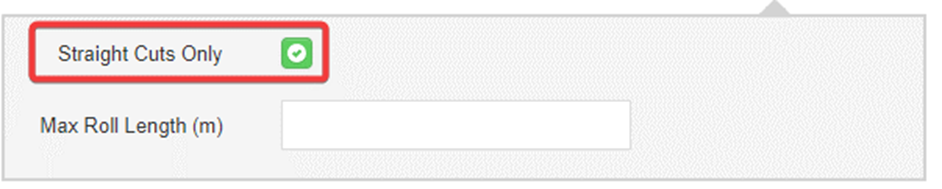

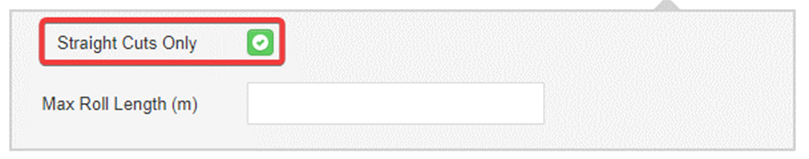

Straight Cuts Only
The gang logic is different based on your selection here:
Checked ON – This will optimise cutting based on a guillotine being used.
Checked OFF – This will optimise cutting based on laser cutting being used where lining up items in straight lines is not as important.
Max Roll Length:
You can override the ‘Max roll Length’ if required (this can only be less
than the roll length and not exceed the rolls length):

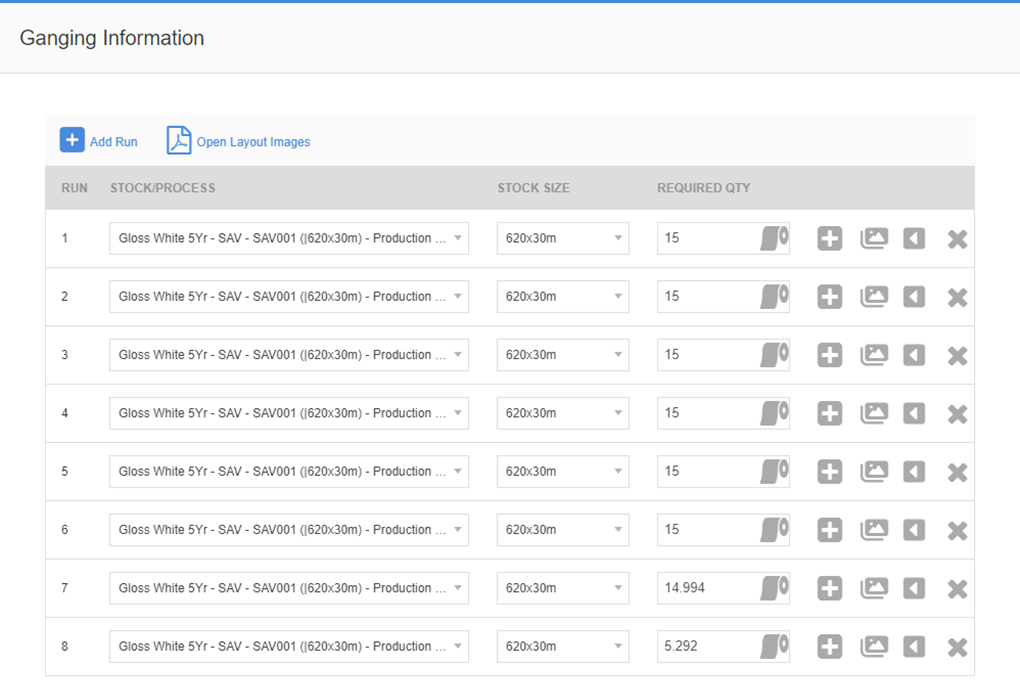

This will calculate out the gang based on the max length input:
Gang Based Operations
Some ‘side’ and ‘section’ based operations (such as laminating and cutting) will be produced against the gang section whereas others like ‘Tape Application’, ‘Edge Sewing’ or adding ‘Eyelets/Grommets’ will be produced against the individual job.

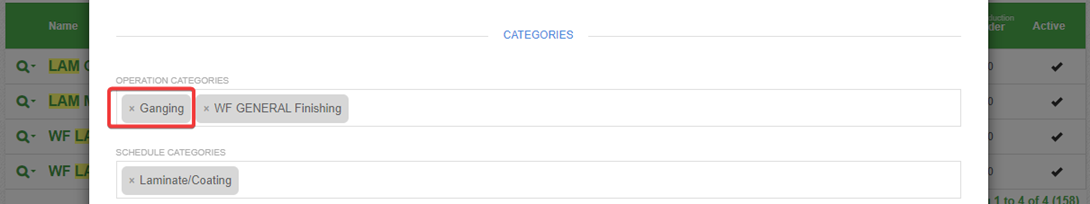

When an operation is to be produced against the gang, inside the operation, under ‘Operation Categories’, add the option of ‘Ganging’ or ‘Coating’. This flags to printIQ where in the workflow to include the operation:

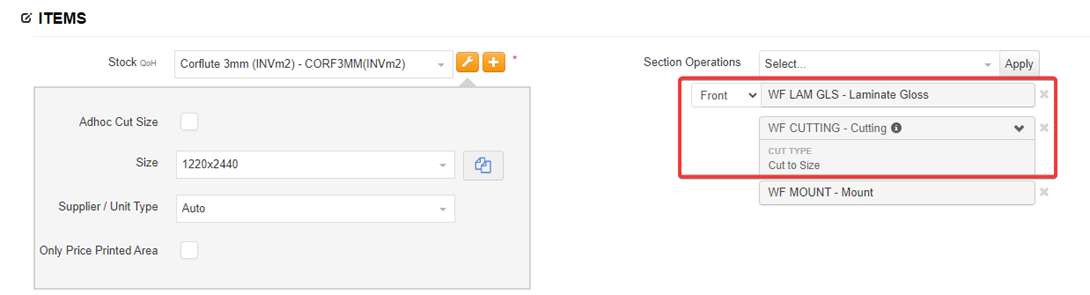

In this example, the operations for Laminate and Cutting are flagged as ‘Ganging’ while the Mount operation is not:

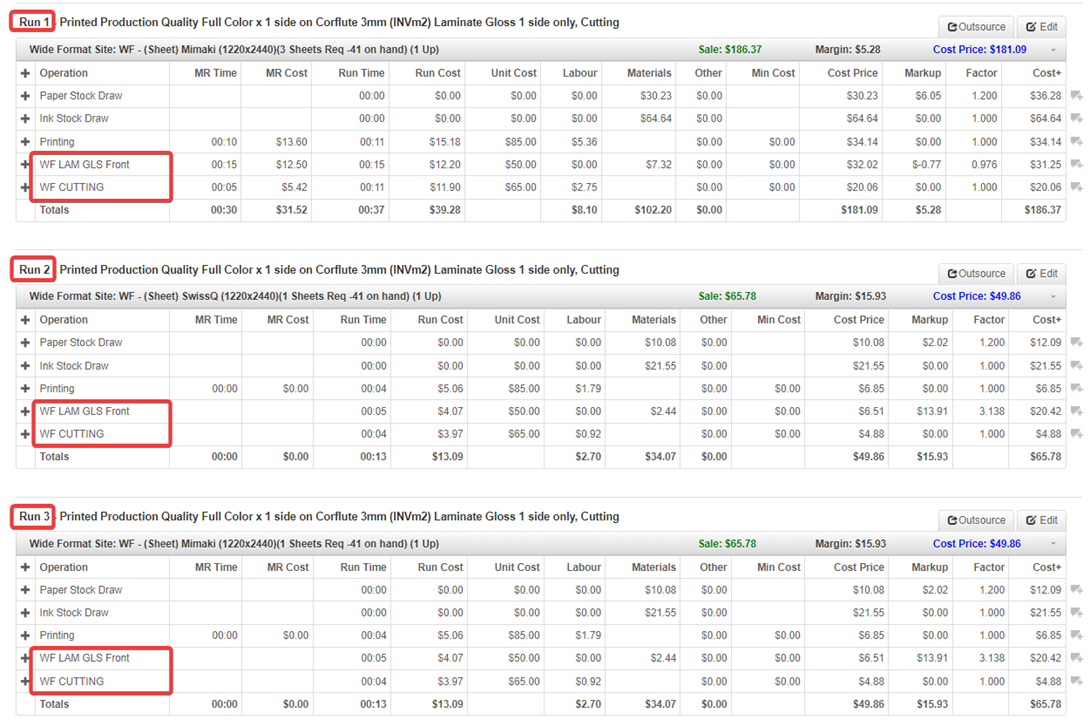

Once the quote is priced, the ‘Runs’ include the gang flagged operations:
While the section based ‘items’ will show all operations but only the non-gang operations have a cost attached to them. These are the post gang finishing:
The gang-based operations shown on the section based ‘items’ are for display only (as this is a base requirement or printIQ), no time or cost is associated with them.
Job Edits

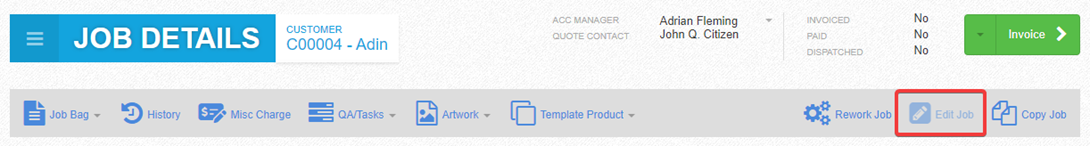

Editing of a gang quoted job is not available. This is because any changes can greatly affect the production and costing of the job. Any changes would need to be done via the creation of a new job and the cancellation of the existing job.
Settings

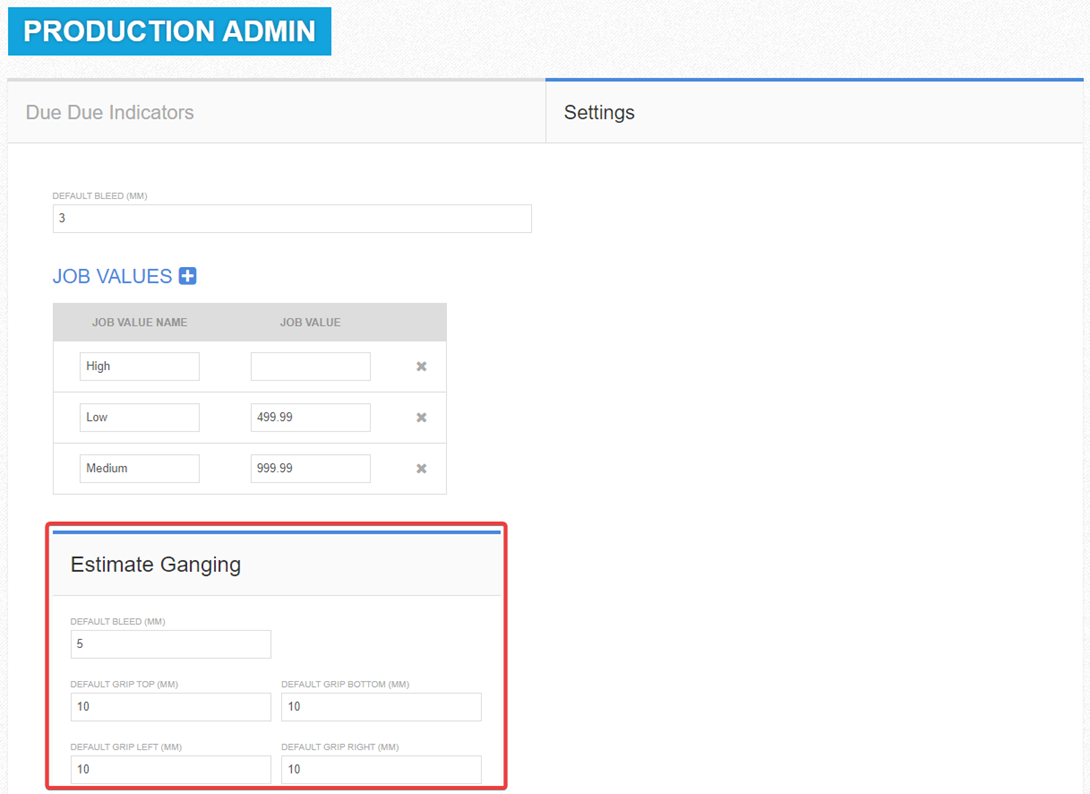

There are various settings inside the ‘Production Admin’ screen related to ganging. Here you can set the default bleed and grips to be set to the gang calculation tool:
Custom Quote Template – Important setting options

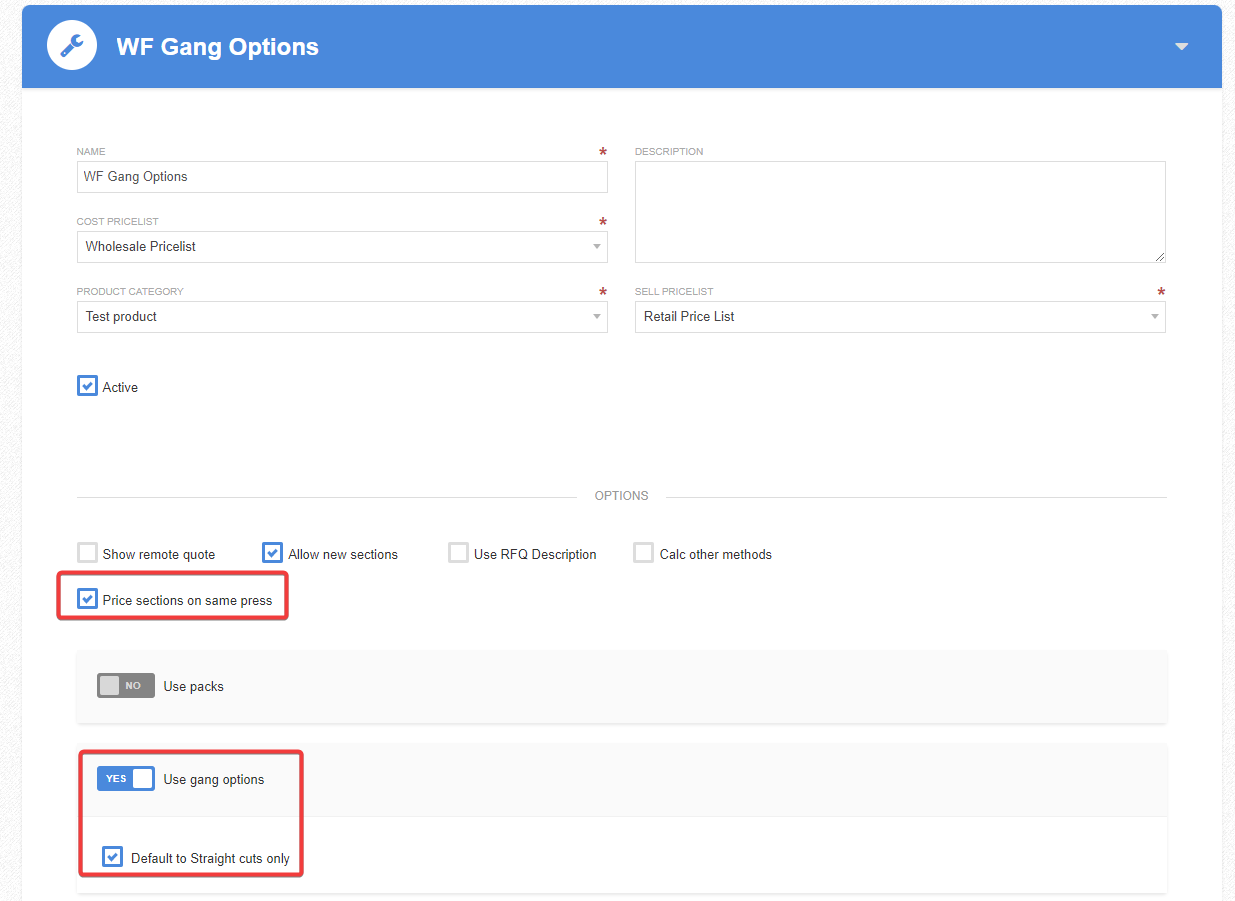

‘Use gang options’ must be set to ‘Yes’ and check ‘On’ the option ‘Price sections on same press’. You can also set the default calculation option on or off for 'Straight Cuts only':
At a ‘section’ level, name the ‘TITLE’ as ‘ITEMS’, hide the section ‘TYPE’ and hide the ‘Production Method’ (as on a gang this is controlled at a ‘Job’ level):
At the ‘Job’ level, make sure to ‘Show’ the ‘Production Method’ and set the ‘Exclusion Options’ as shown:
The template will look as:
Description
Product Template:
{Product}
{Sections}
{JobFinishing:*}
Section Template:
{SectionName}
Quantity: {Quantity} - {SizeName} {Printed} {Process}{Stock: on *}
{Finishing:*}
Press Setup
Ideally, to get the most out of the ganging efficiencies, your press pricing should be configured to price cheaper the more that you print.

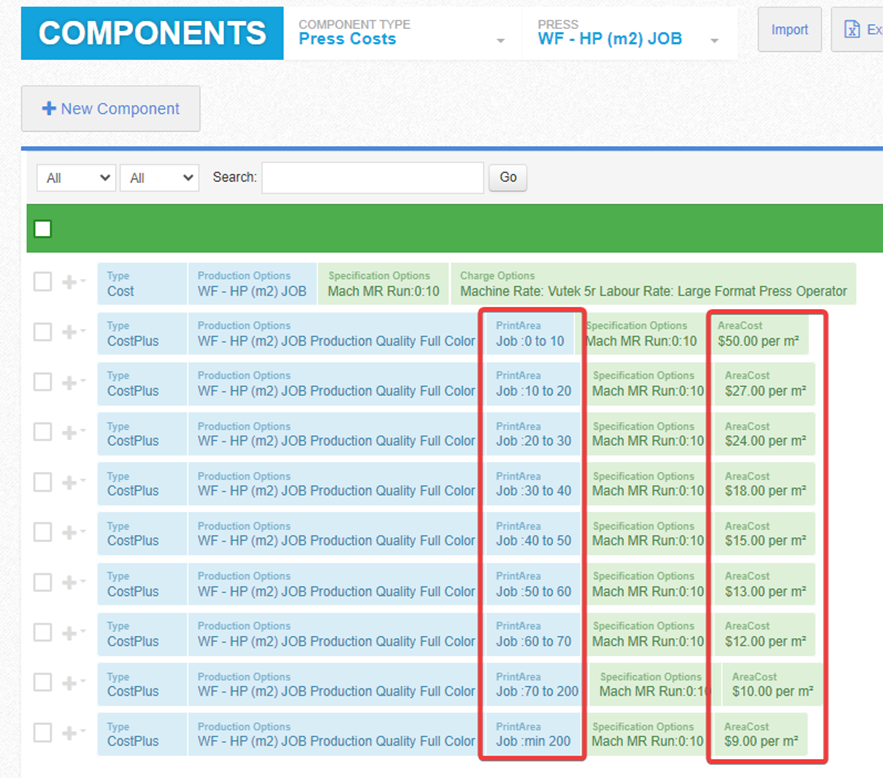

We recommend your price breaks be setup to split by the ‘Job Area m2/f2’ with the price decreasing as the area increases. The breaks would need to be set at the JOB level:
