Quoting with Lanes

Quoting with Lanes

Label printing utilises the concept of lanes when laying up the run imposition for production.
To enable this we have included a lanes calculator into our quote templates.

In this example we have x3 kinds of label at a size of 100mm x 100mm.
QTYS REQUIRED:

Version A: x18,000
Version B: x36,000
Version C: x9000

When starting the quote, the ‘Versions’ are entered at the top of the screen.
When using Advanced Kinds, the kind name will auto-populate with a placeholder (Version A).
If you don't enter anything in this text box, and only enter a quantity, it will use the default placeholder name.
If you enter text, your entered text will be used as the version / kind name.
This is configurable under Customise > Settings > Global:


Against the ‘section’ select the stock, colours and any section operations. This can include selecting a die as the number up set against the die will be auto populated in the calculation process:




Now click on the ‘Runs Calculator’:

A screenshot of a computer

Description automatically generated

RUNS/LANES LOGIC:

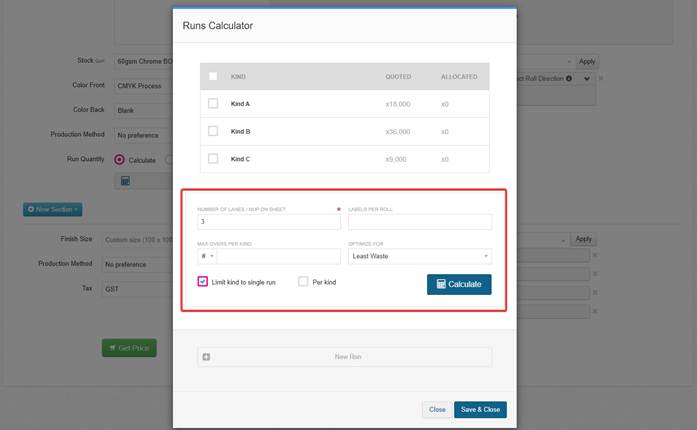

The calculator screen will drop down. Multiple fields are available for manual entry:
Number of Lanes: This is manually entered or pulled from the number across of the linked die.
Labels Per Roll: This is optional but is used in the calculation when entered. It will round the print runs up to the entered qty. For our example we have a 3up die linked and require 3000 qty per roll.
Max Overs per kind: You can enter a max number of overs if required. This can be set by a number or a %
Optmize for: This can be set to either ‘Least Waste’ or ‘Least Runs’ depending on your requirements
Limit kind to a single run: Check this ON to make sure a kind is not spread out onto multiple runs. For example if printing digitally, you may want this OFF as plates are of no concern.
Per kind: this will auto place each kind only its own run



When we click ‘Calculate’, printIQ will calculate the run splits.
Here we have calculated 2 runs producing zero overs:





To use the layouts calculated, select ‘Save & Close’:

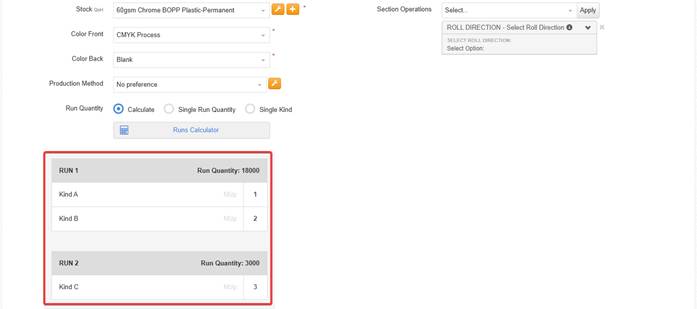

 A grid will show in the section outlining the breakdown:

 A screenshot of a computer

Description automatically generated



Finish the quote by adding any other required job or section-based operation and click ‘Get Price’:

A red rectangle with black text

Description automatically generated

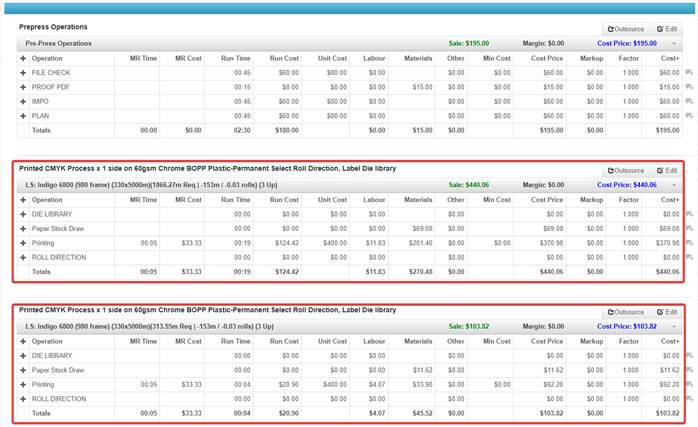

This will calculate the quote and split each run into its own production section:

A screenshot of a computer

Description automatically generated


Info

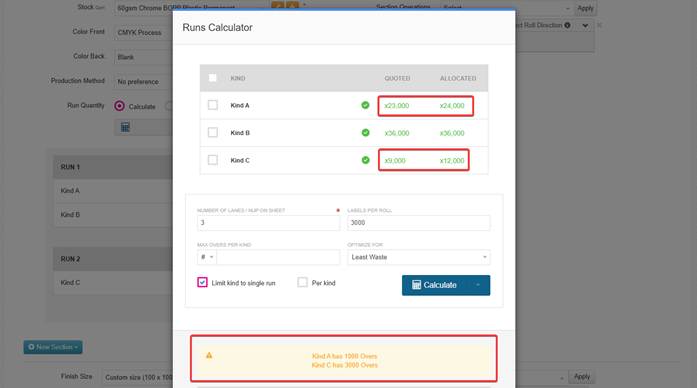

NOTE: If any overs are produced as part of the calculation, they will be flagged, showing the kinds and quantity of overs produced for each kind:






Editing Calculated Run Splits

The calculated default run splits can be edited if they do not match how you would like to produce the job.
The calculator has various ‘edit options allowing you to manually override the default:

QUOTE: Inside the calculated lanes are the following edit options:

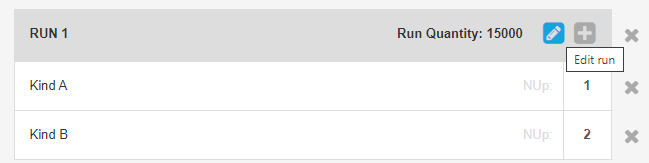

Edit Run:

Table

Description automatically generated


This lets you change the ‘Run Quantity’:

Graphical user interface, application

Description automatically generated


Add Kind to Run:

A picture containing application

Description automatically generated


This lets you add any ‘kind’not currently attached to this run:

Graphical user interface, Teams

Description automatically generated with medium confidence

Remove Lane:
Lets you delete the entire run from the list:



Remove Kind:
Lets you remove that kind from the run:

Table

Description automatically generated with low confidence



New Run:
Lets you add an additional run to the quote:



Custom Quoting Items From A Product Range

When using the ‘Product Range’ to custom quote, you select a customer and the items you would like to add to the quote. You can then select to ‘Add Custom Product’:



The custom quote will open and the kinds will display. You need to enter a quantity against each item and click the green ‘tick’:

A screenshot of a computer

Description automatically generated

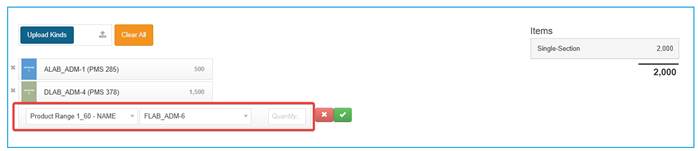

You can also add additional items as required:

A screenshot of a computer

AI-generated content may be incorrect.



A screenshot of a computer

AI-generated content may be incorrect.

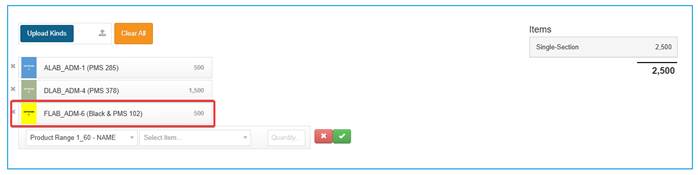

If any of the items are setup using PMS notes, Product Item Notes or Internal Notes, you will be flagged on the screen:

A screenshot of a computer

AI-generated content may be incorrect.

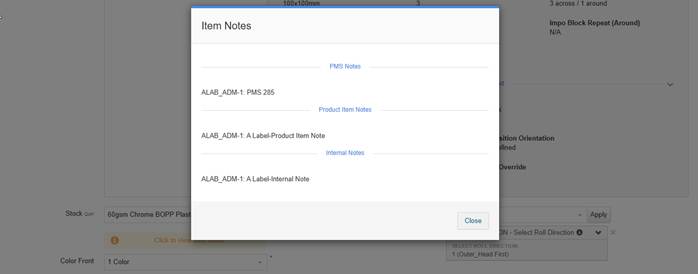

Click the box to see the notes:

A screenshot of a computer

AI-generated content may be incorrect.

The PMS notes will also show in the ‘Runs Calculator’:

A screenshot of a computer

AI-generated content may be incorrect.



You can click ‘Calculate’ to have printIQ auto impose the runs or you can manually select what items you would like to calculate on each run as you go. This allows you to control how the runs are built. Use the checkbox to select the items to calculate:

A screenshot of a computer

AI-generated content may be incorrect.

This will build the run:

A screenshot of a computer

AI-generated content may be incorrect.

Keep selecting the items until all items are added to runs:

A screenshot of a computer

AI-generated content may be incorrect.





If you want each kind to be assigned its own run, click on the ‘Per Kind’ checkbox and ‘Calculate’:

A screenshot of a computer

AI-generated content may be incorrect.



Each item will be assigned its own run:

A screenshot of a computer

AI-generated content may be incorrect.



Editing At A Job Level

Edits can be done at job stage using ‘Version Quote’ or ‘Change Quantity’.
‘Change Quantity’ is more limited than ‘Version Quote’. You cannot ‘add’ or ‘remove’ runs, only change the kinds and qty attached to the existing runs. Use ‘Version Quote’ for edits requiring a change of the number of runs.

*This is because printIQ generates the job as individual sections. So, a quote with 2 ‘runs’ will create 2 line items on the production boards:



In the job details, you can see the kinds assigned to each run/section:


Under the ‘Edit Job’ screen, you can edit from the ‘Change Quantity’ tab:

A screenshot of a computer

Description automatically generated

In this example we have 2 runs. Run 1 contains ALAB & BLAB. Run 2 contains DLAB & ELAB:

A screenshot of a computer

Description automatically generated

Due to the label colours, we want to reconfigure to have Run 1 containing ALAB & ELAB and Run 2 to contain BLAB & DLAB.

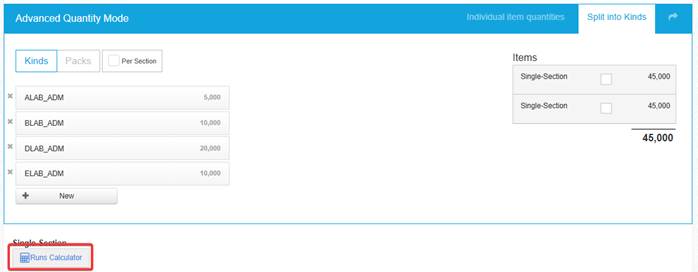

Click the ‘Runs Calculator’ button to open the modal:

A screenshot of a computer

Description automatically generated



The ‘Runs Calculator’ modal will show:

A screenshot of a computer

Description automatically generated



Select the kinds for the first run:

A screenshot of a computer

Description automatically generated


Click ‘Calculate’ to include the calculated run:


Select the other kinds:

A screenshot of a computer

Description automatically generated



And ‘Calculate’ to add:



Click ‘Save & Close’:

A screenshot of a computer

Description automatically generated


Now click ‘Save ‘to recalculate the job:

A screenshot of a computer

Description automatically generated



From the modal, select ‘Confirm’:

A screenshot of a computer

Description automatically generated


The job is now updated with the new configuration:

A screenshot of a computer

Description automatically generated

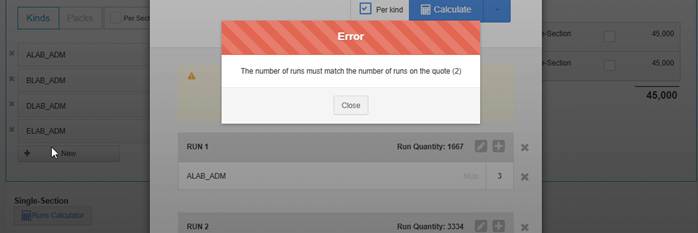

If you try to do an edit and create less or more section on the existing job, you will get an error:

A screenshot of a computer

Description automatically generated



*Edits requiring changes to the number of runs generated use ‘Version Quote’ workflow:



XML
The lanes configuration is included in the xml:

Text

Description automatically generated with low confidence
