Operation Scanning - Using Barcode Scanner

Operation Scanning - Using Barcode Scanner

Requirements

You need to purchase Data Capture module.
Please contact customer support for more information.

How to use

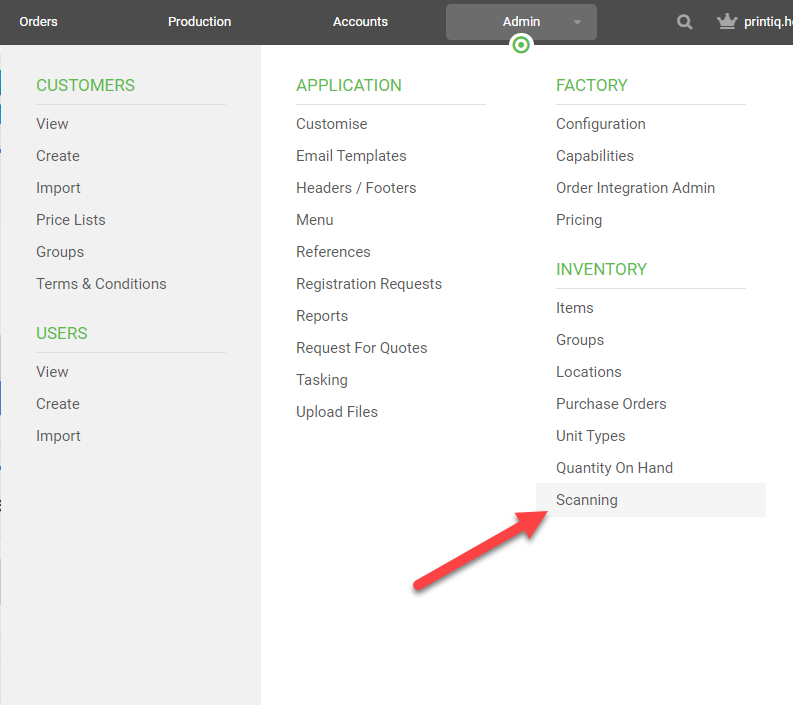

1. Navigate to the Operation Scanning page.

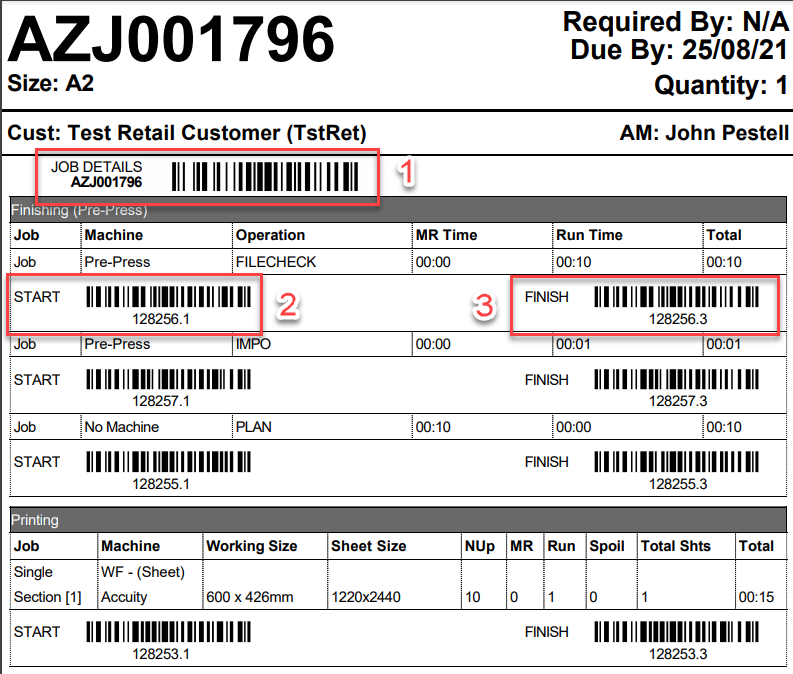

2. Production Job Bag (With Barcodes)


      1.  Job details: Scanning job details will open the Job details page.
      2. Scan over the Operation barcode ‘START’: Scan this part of the job bag to start the operation time
      3.  Scan over the Operation barcode ‘FINISH’: Scan this part of the job bag to finish the operation time
To Pause the timer, rescan the start barcode


3. For the scanning to work, You have to be "in" operation scanning page.

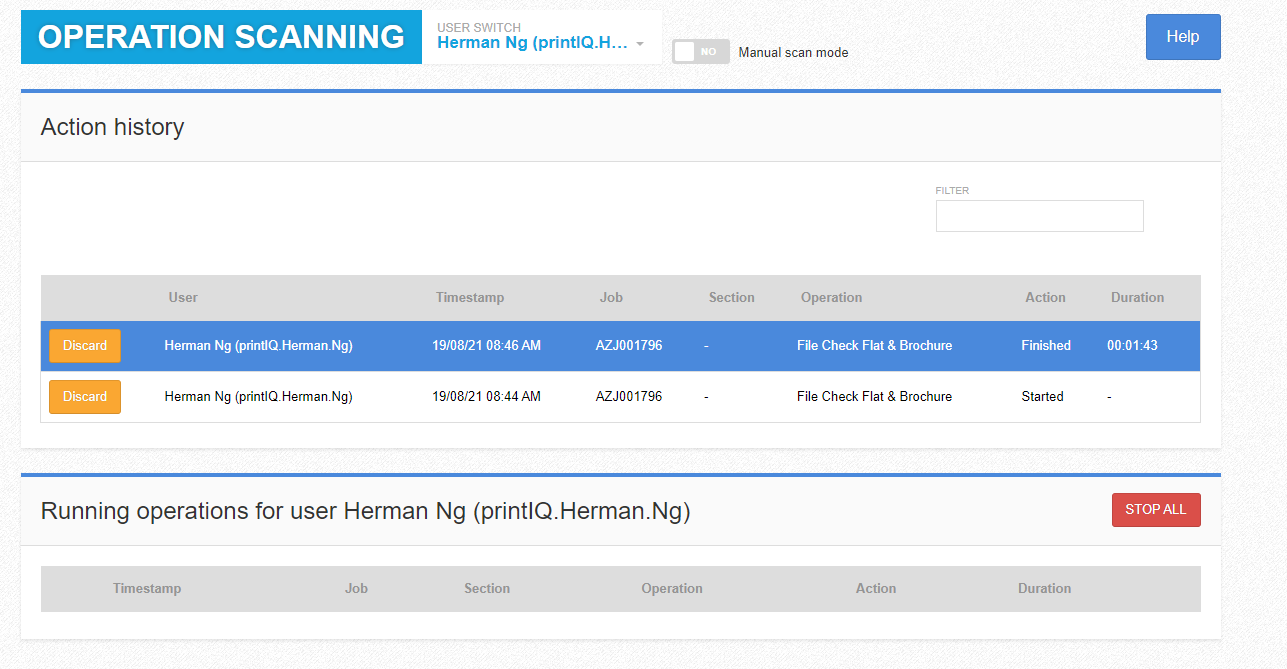

4. Scanning example.
Scanning starts "file check".



Scan Finish in File Check operation

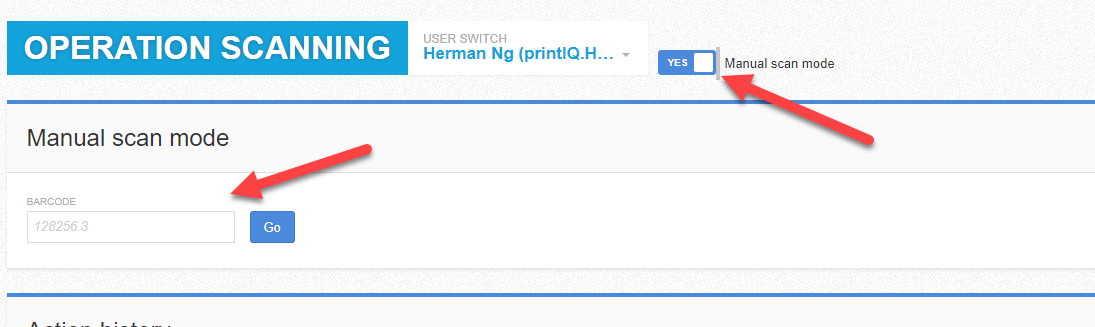

You can type "start" and "finish" code manually here.
