In market segments such as label printing, the die is the basis of the job.
With this in mind, you can configure a custom template to prioritize the die as the starting point for the quote.

Against a custom template, on the admin screen, at a ‘section’ level, check ON the ‘Prioritize Die’ option:



With this selected, the first field will be ‘Die Cut’:



Any operation marked as ‘Show die library’ will display in the 'Die Cut' dropdown:





When a die operation is selected, the ‘Reference’ and ‘Group’ fields will show:



Once selected, the modal will populate showing various details used on the components:



These include....
‘Reference’ and ‘Group’ fields:



‘Descriptions’ and ‘Images’:



From the press setup, the ‘Imposition References’ used to link the die to the press:





Along with any ‘Component’ references used:



Click on the ‘arrow’ for the ‘Die Block’ to include the layout specs of the die:

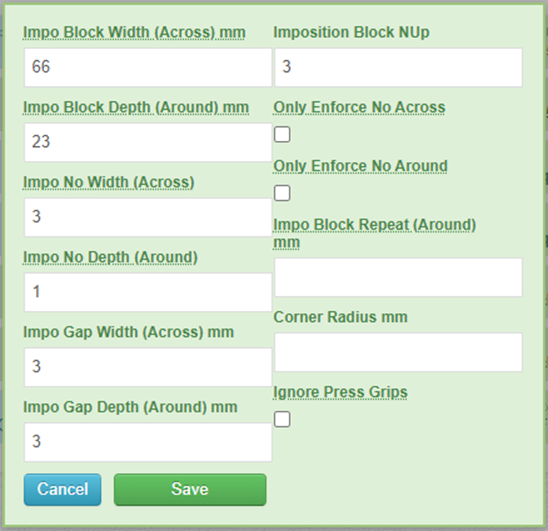

This is the ‘Imposition Block’ fields from the die’s imposition components:



At the production stage, in the job details screen, click on the die operation:

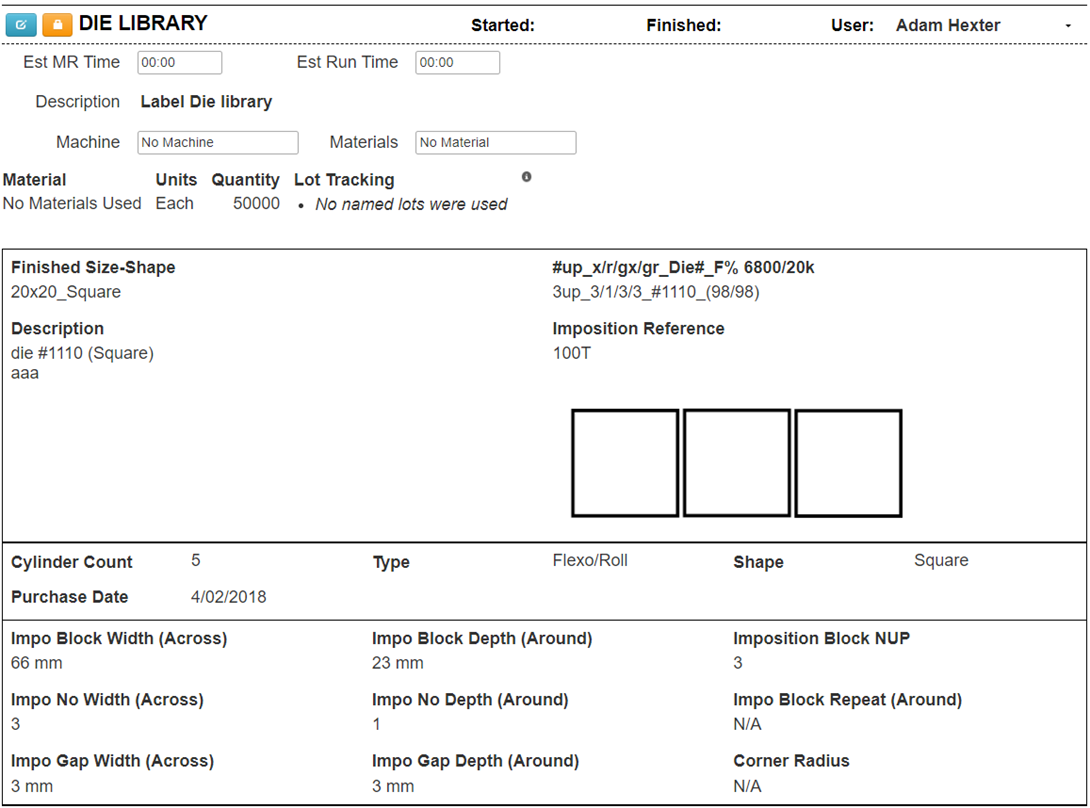

The popup will display all the die details seen at quote stage:



The digital job bag will also display the same information:
