Manage Product Categories (Build the Product Tree)

Manage Product Categories (Build the Product Tree)


This is where you create your product tree which is used to fine tune the product search for Simplified and Advanced Quoting.
You can create as many options and layers as you need with the aim being to configure a set of products for each node on the tree.

Examples of a Product Tree

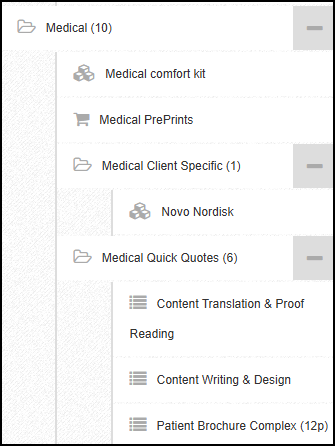

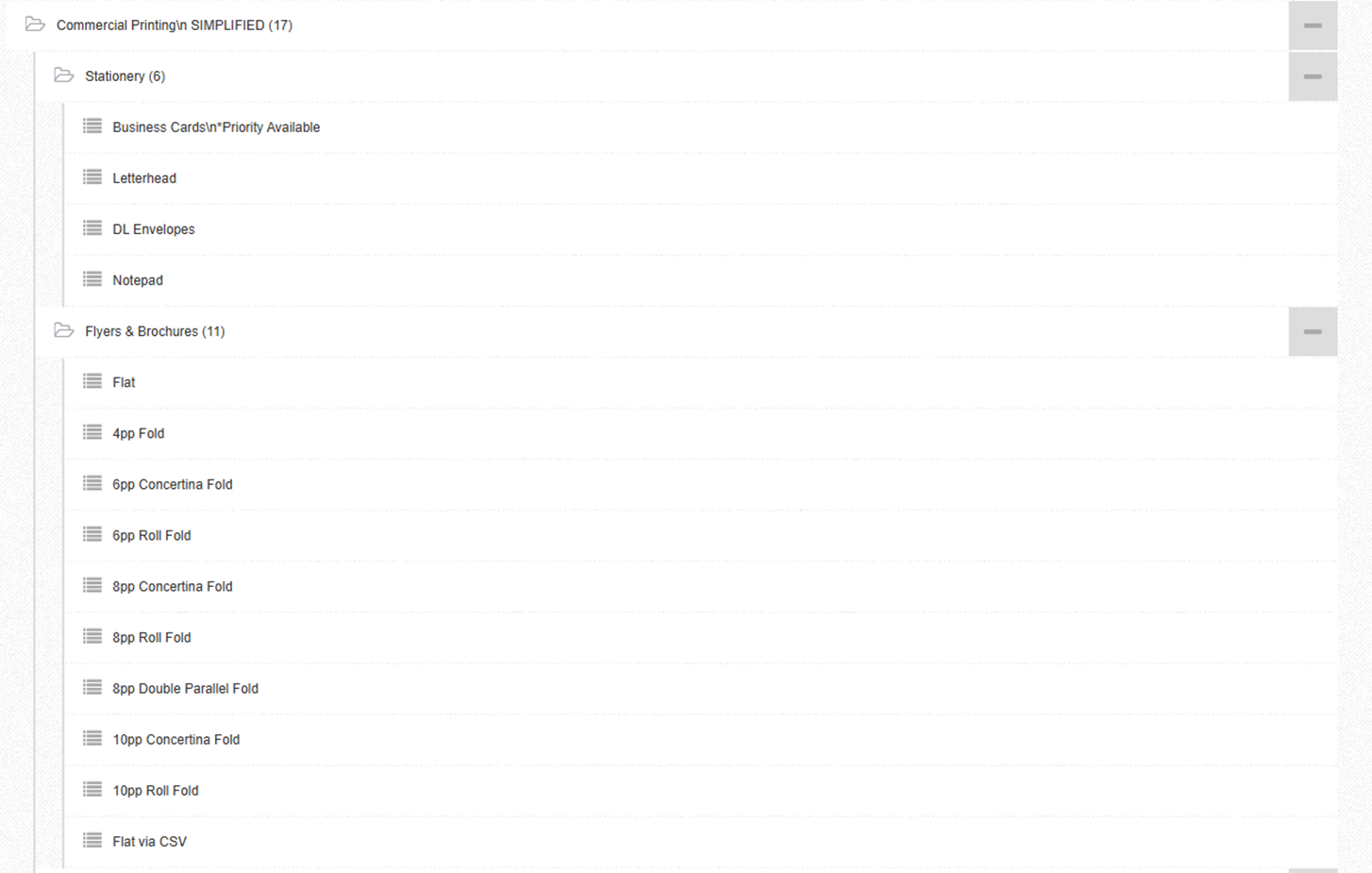

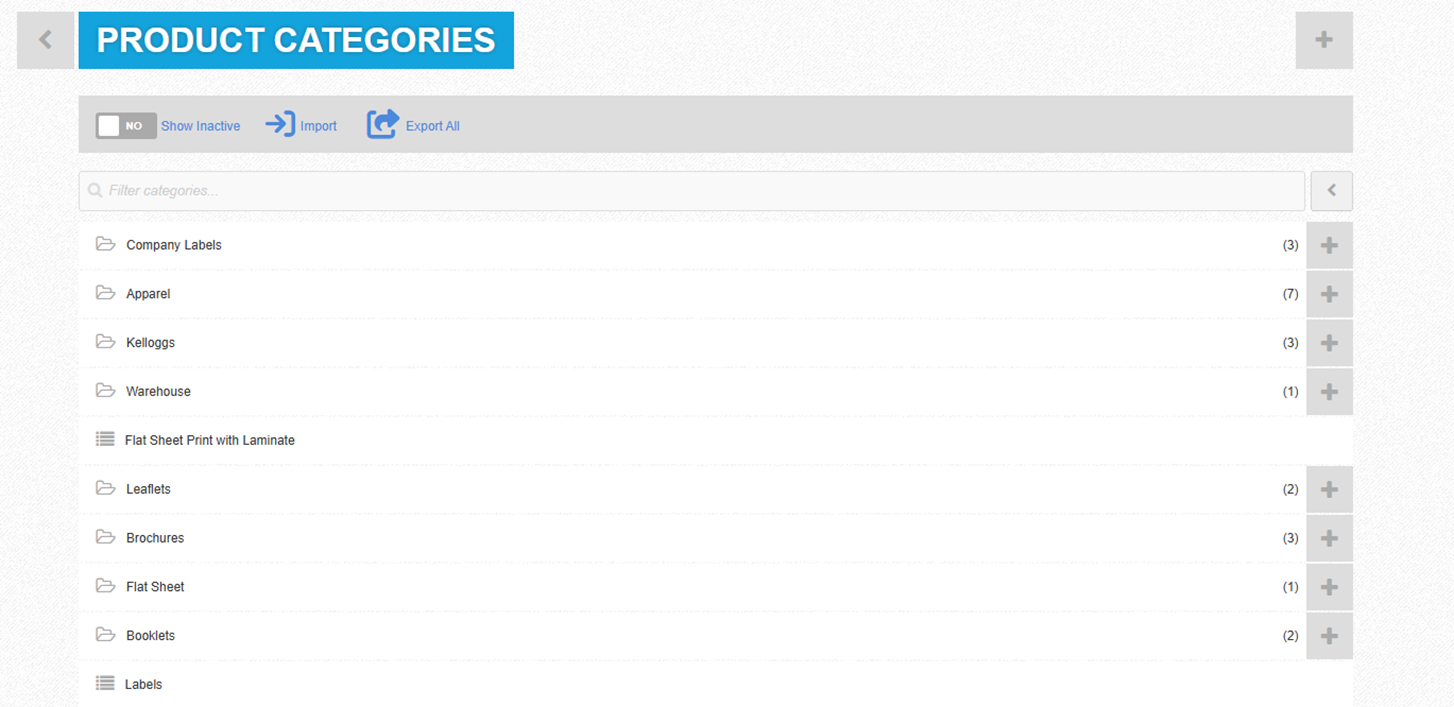

  An example of a completed product tree is shown below.



How To Find Product Categories For Editing

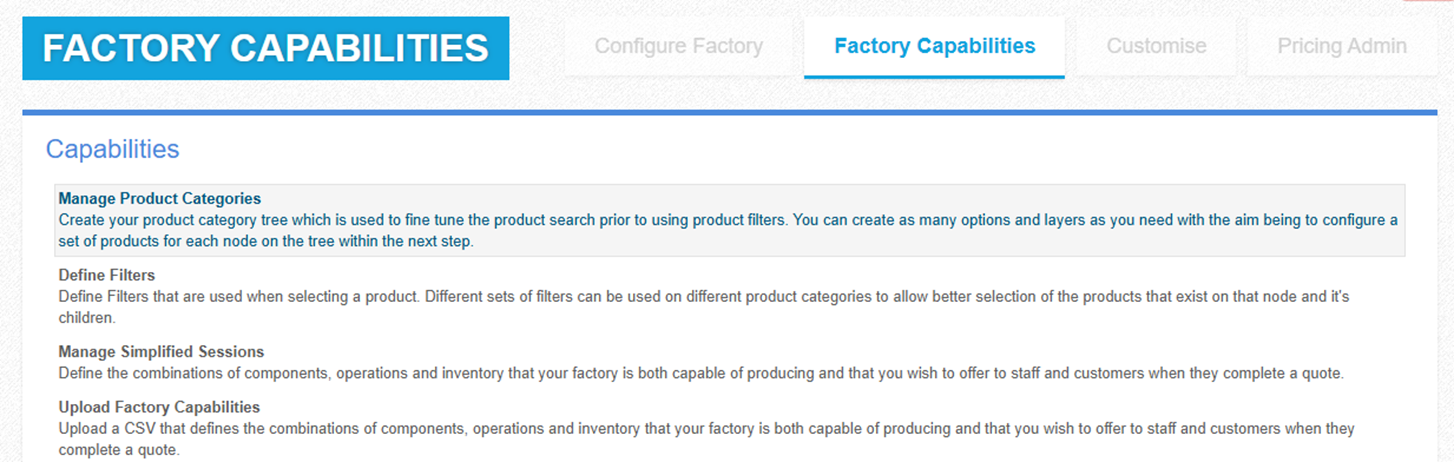

All this is managed from  Admin > Factory Capabilities > Manage Product Categories.



Adding Product Categories

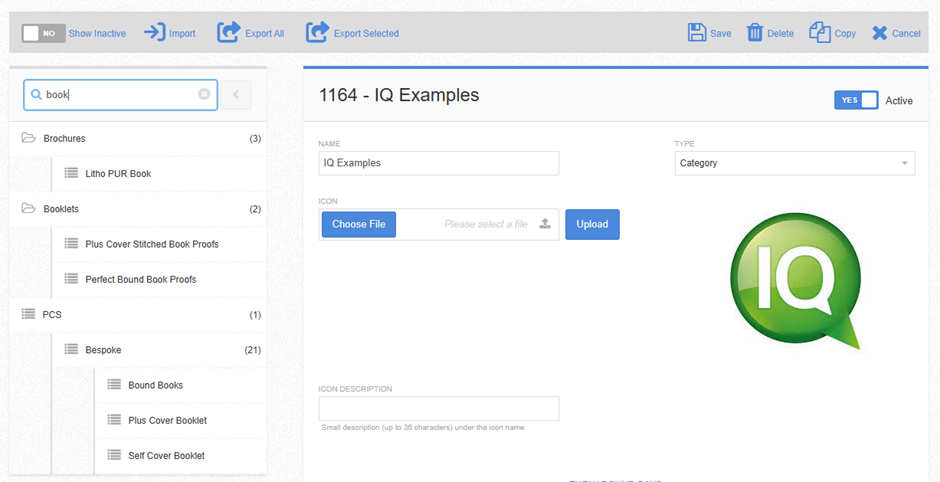

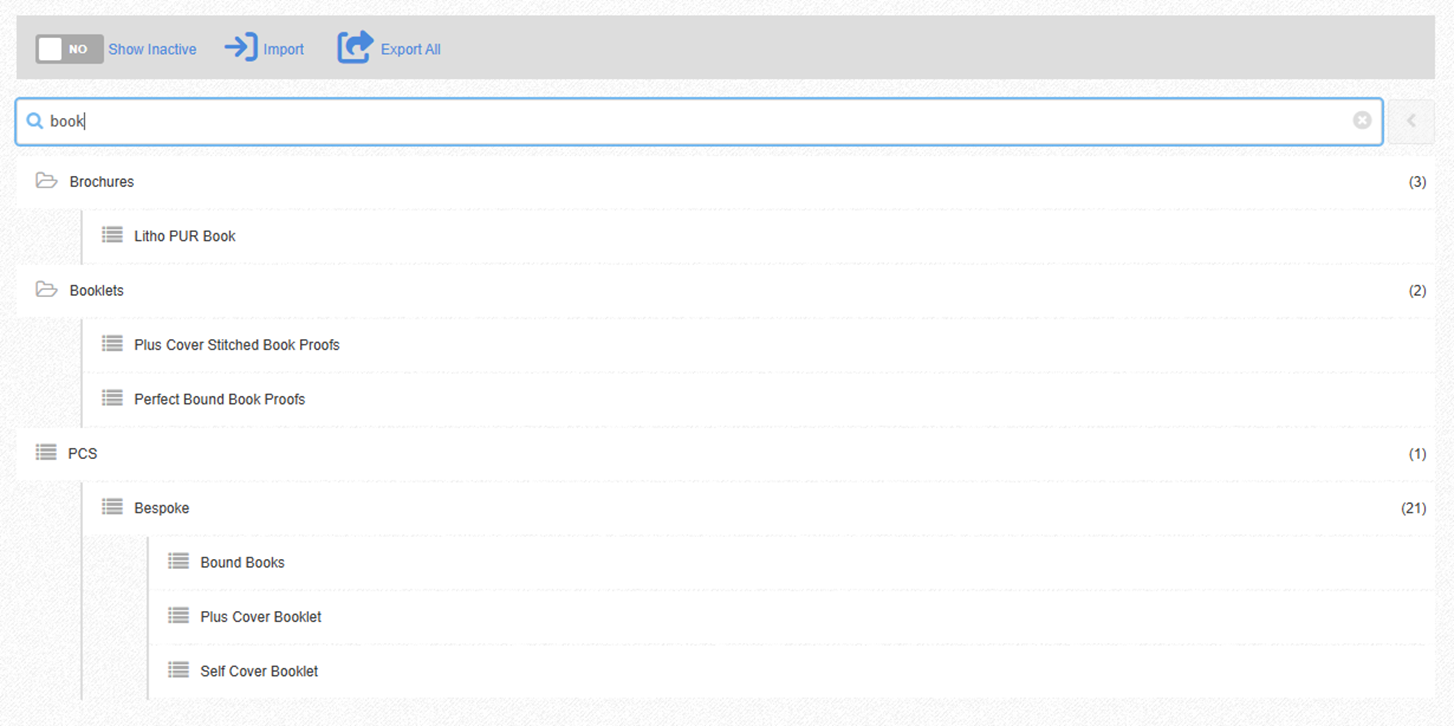

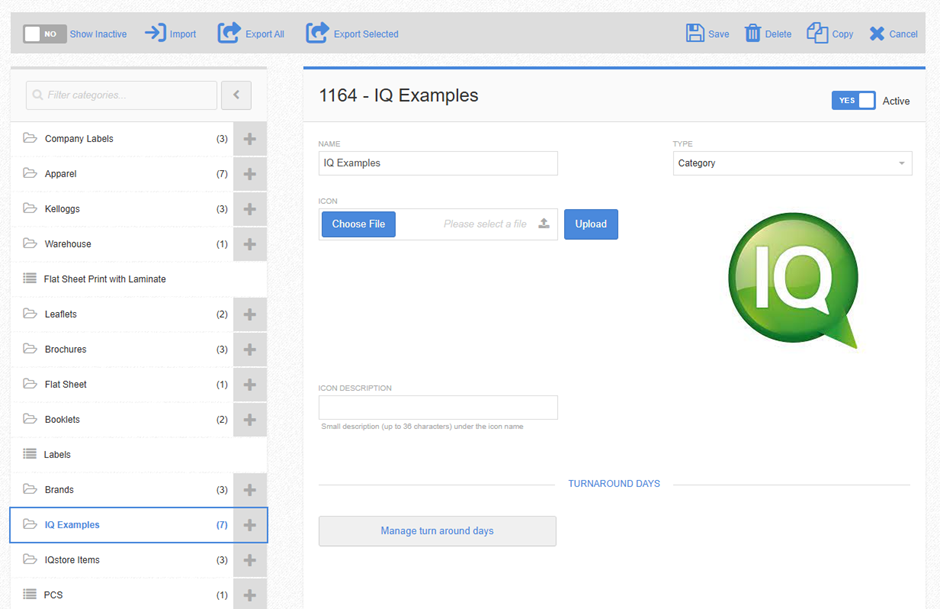

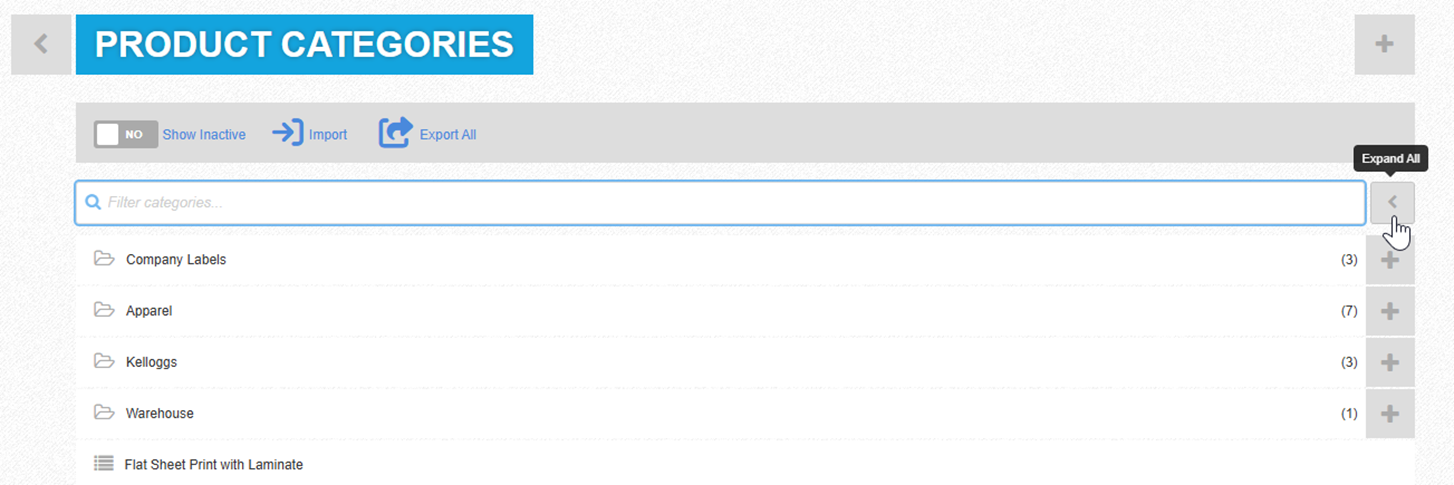

 When you click the ‘Manage Product Categories’ the following screen will appear:

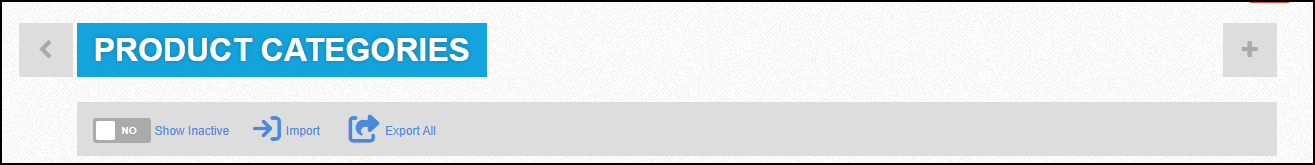

Click the ‘+’ button to the right of the PRODUCT CATEGORIES header.


Selecting a Product Category

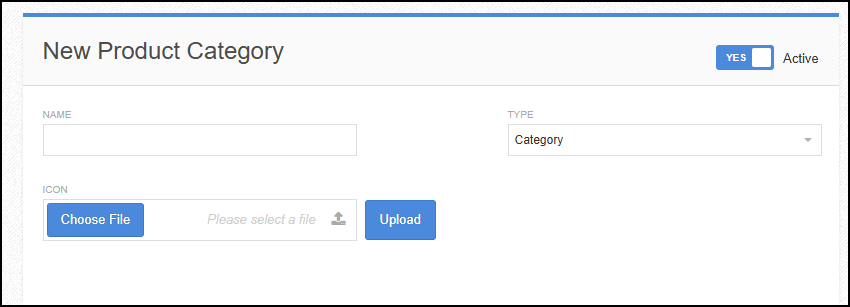

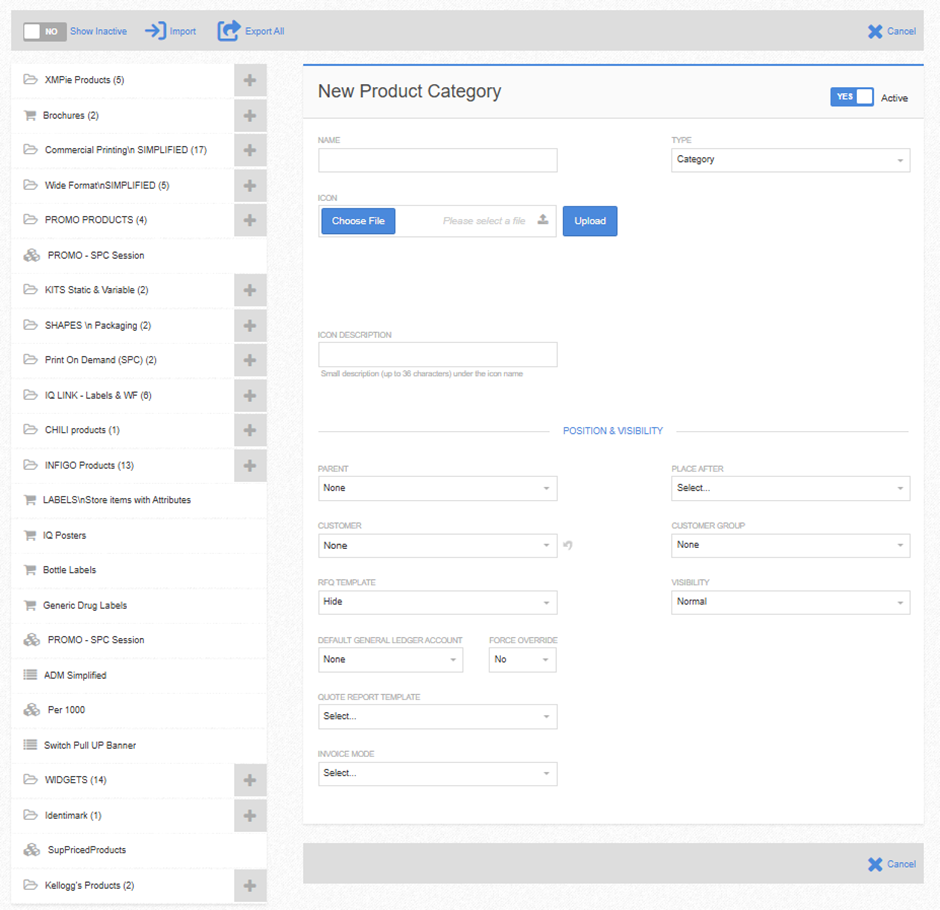

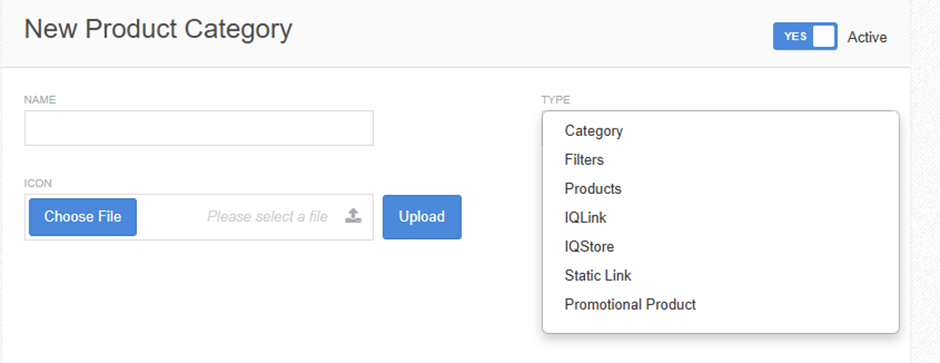

Select the TYPE for the new item from the drop down.



Types of Product Categories

The following are the types of Product Categories available to you when you create a new one:

Category

=


Filters

=


Products

=


IQLink

=


IQStore

=


Static Link

=



A Category (also called a parent)

A category is like a folder in your simplified catalogue. It is where you are able to store simplified sessions, products, or IQ store items.
You are also able to apply attributes to the sessions contained within a category such as:
  1. Customer Groups (ie. who can see this the items in this category)
The following will inherit their attributes from the parent "category" when you click the "inherit box" inside the "child"

  1. Icon
  2. Quantity Lists
  3. Max Kinds Quantity
  4. Custom Size Hint
  5. Invoice Code
  6. Rounding Target
  7. Default General Ledger
  8. Approver
  9. Approval Min Limit
  10. Approval Max Limit
  11. Quote Reporte Tempalte
  12. Invoice Mode

A Filter

A filter is used for a "regular simplified session" where you will go on to create filters for the items you want your customer to be able to choose and have the system.

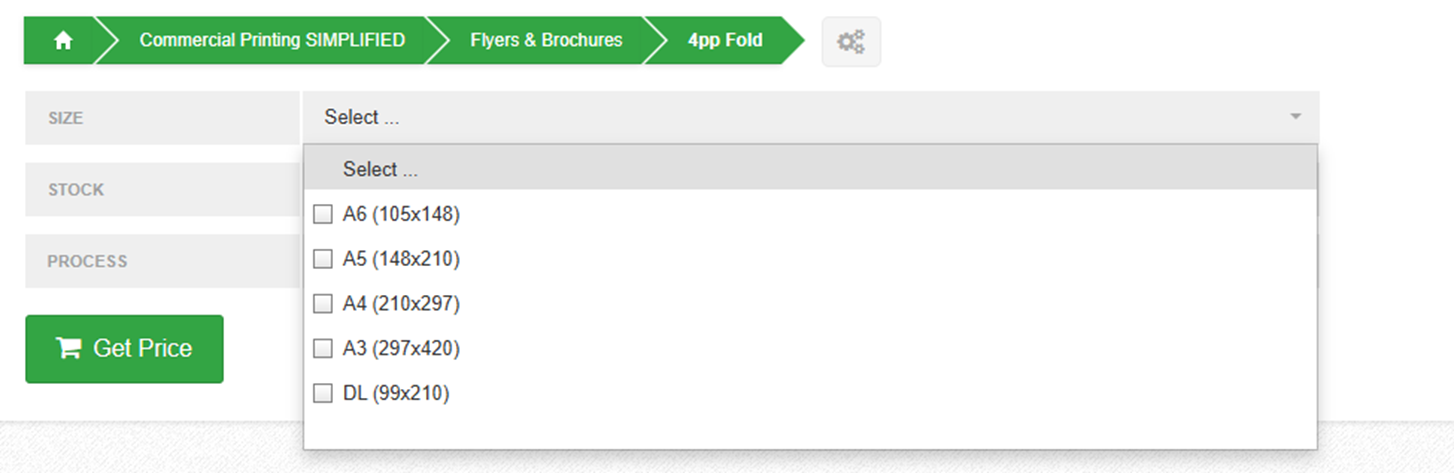

For instance you'll be able to set the stock, colour:

Once you have created the filter ( Define Filters under capabilities), you will create the simplified session ( Define the Factory Capabilities under capabilities).
Once you name it click the "NEW DEFINITION" button:

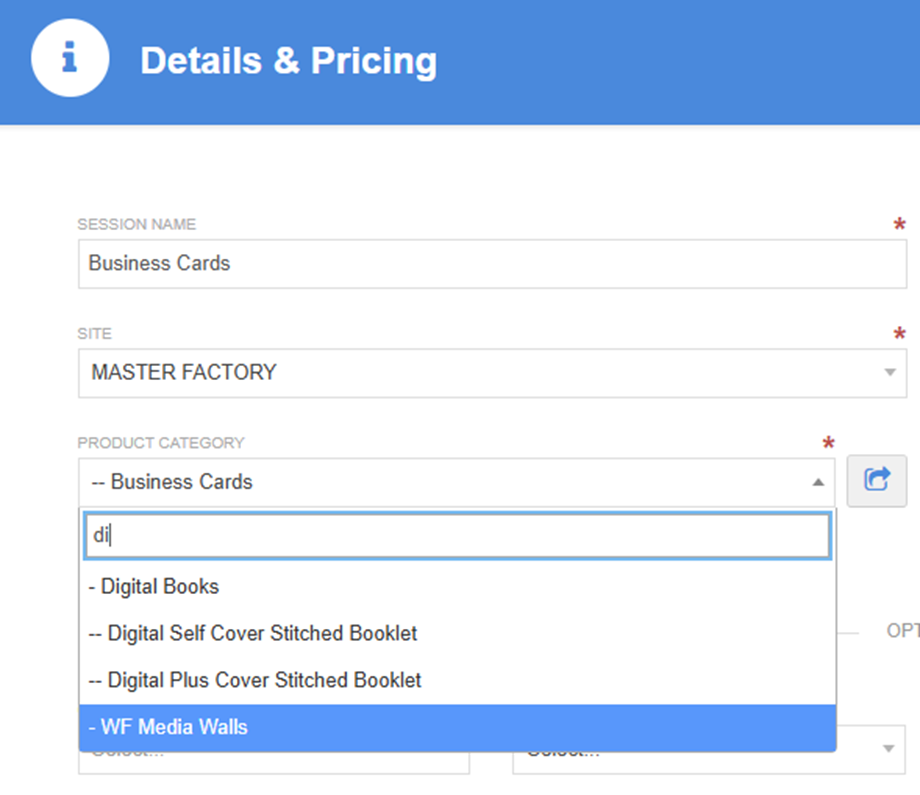

When you then be asked to pick a tree node to hang it on:

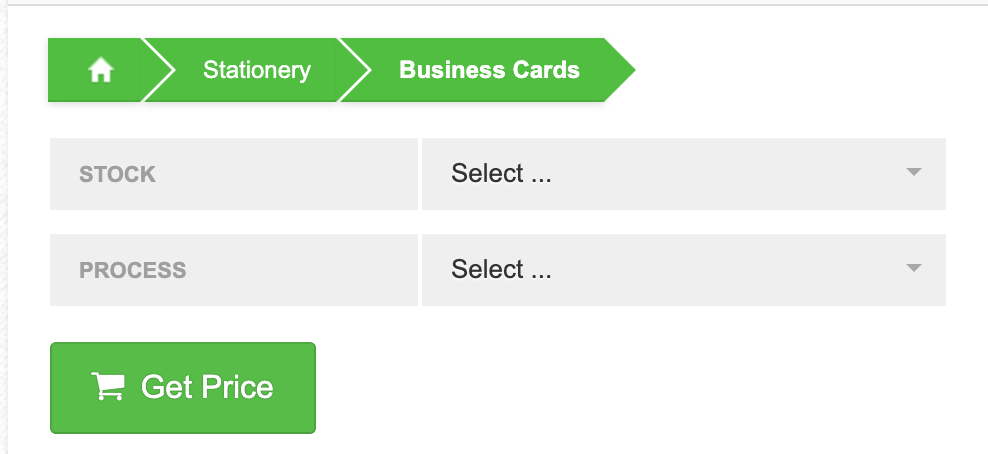

When using the Filter the result will generate a quote that can be turned into a job

A Product

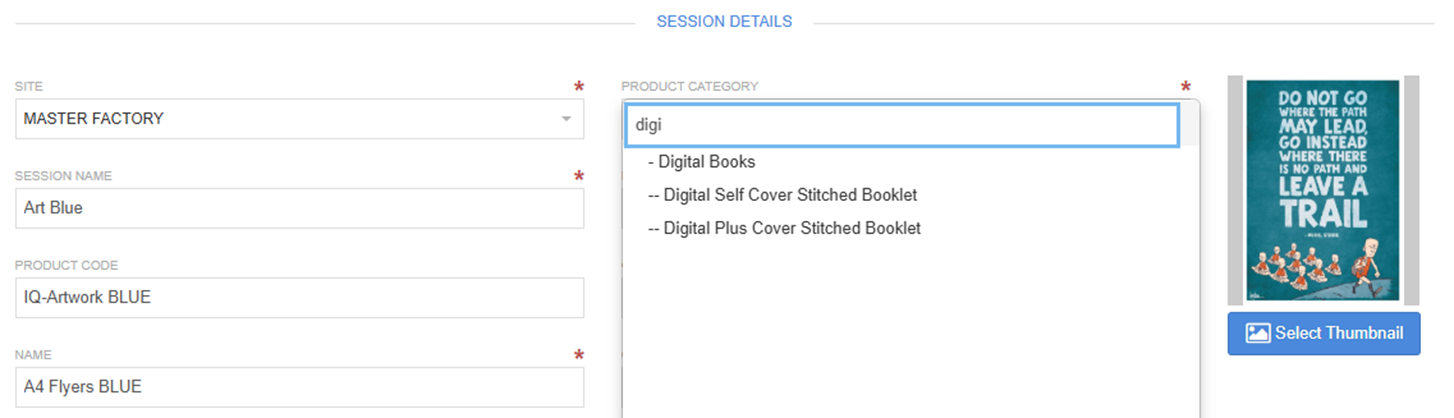

A product is for simplified sessions created using the "Single Product Creation" either by creating the directly, or by templatizing a quote and turning it into a simplified product.  When you do this you will have to choose the "tree node" inside the session details to hang it on this branch of the catalogue "tree":


When using the Product the result will generate a j ob inside IQ that can be printed
This is used to make a link to a product on the site of another IQ Customer (i.e. another printer) you will be sharing products with. Talk to your build lead about this as there is extensive setup required.

IQ Store

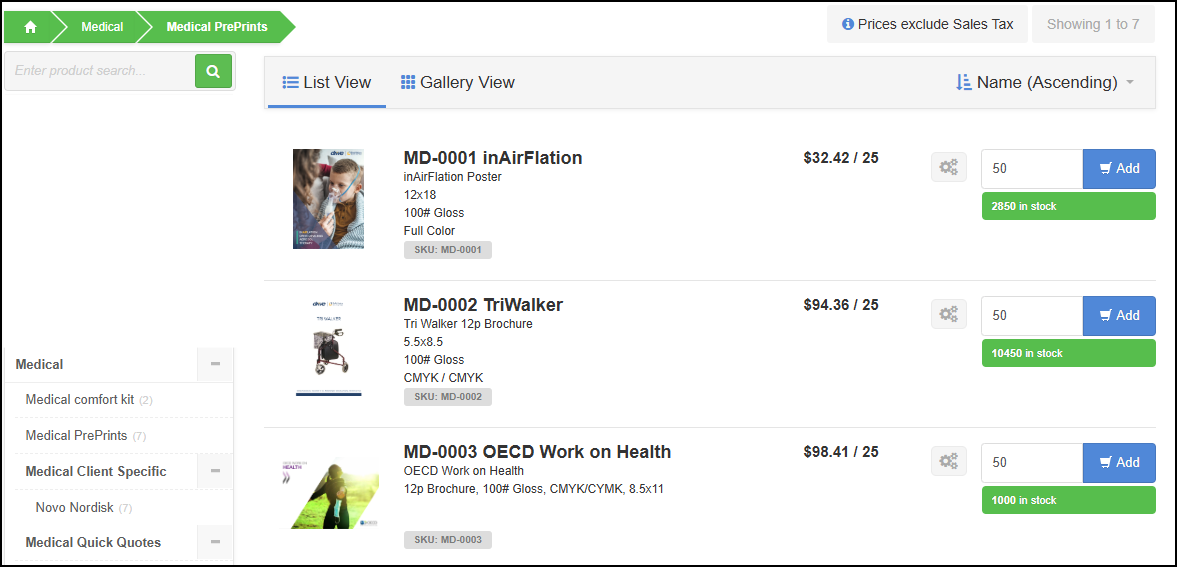

IQ Store Items are "static items" that typically sit on a shelf, pre-manufactured, to be ordered. They could be items such as "books" that have originated with a an IQ quote (and you can link one), but they are now in a completed form, and will be ordered and shipped "as is". They are also things like cups, jackets, tumblers, or things you bring into and sell through your store.
These are hung on the tree when you choose a category in step 2 of the Store Item Creation:

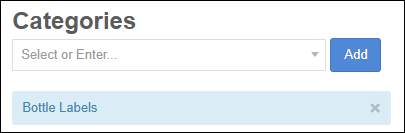

Simply choose your tree node from the list under categories and click "add" - it will show up in blue.

When using the Product the result will generate a  SALES ITEM   job and its associated pick list

Information not available.

Reviewing a Product Tree

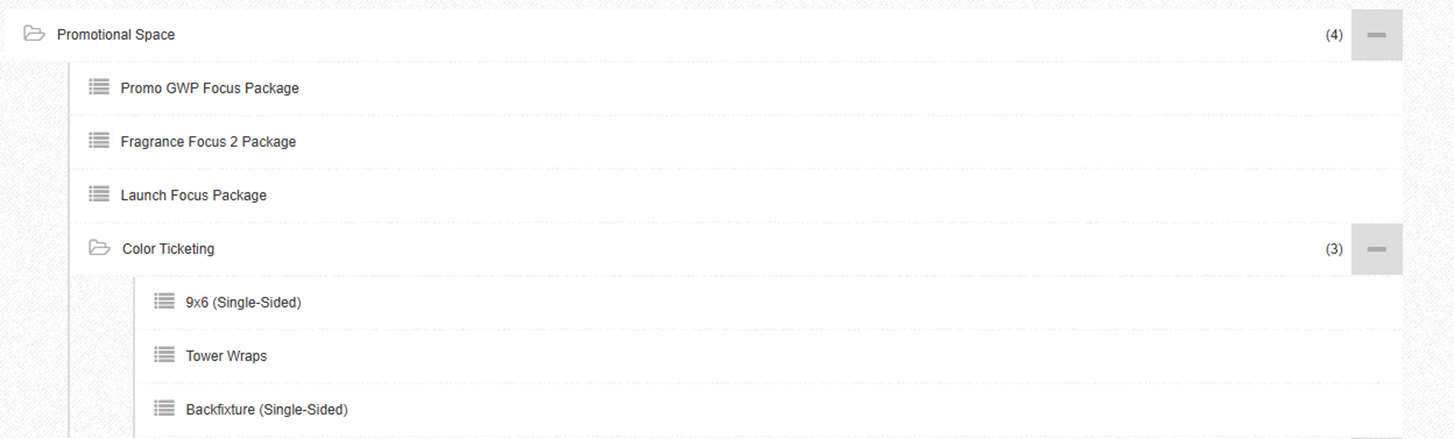

In the instance below, you can see what type the item is by the icons and where it sits on the tree by whether it is indented or not.
You can see the ‘Promotional Space’ item is a Category and it is at the top of the tree as it sits at the far left with other filters and category items indented underneath it.

 e.g. the 9x6 (Single Sided) filter has Color Ticketing as its parent item and Color Ticketing has Promotional Space as its parent item.






For each item you create you have the ability to set options for
  • Position & Visibility
  • Product & Filters
  • Pricing & Approval
These options can be inherited from the Parent Item.

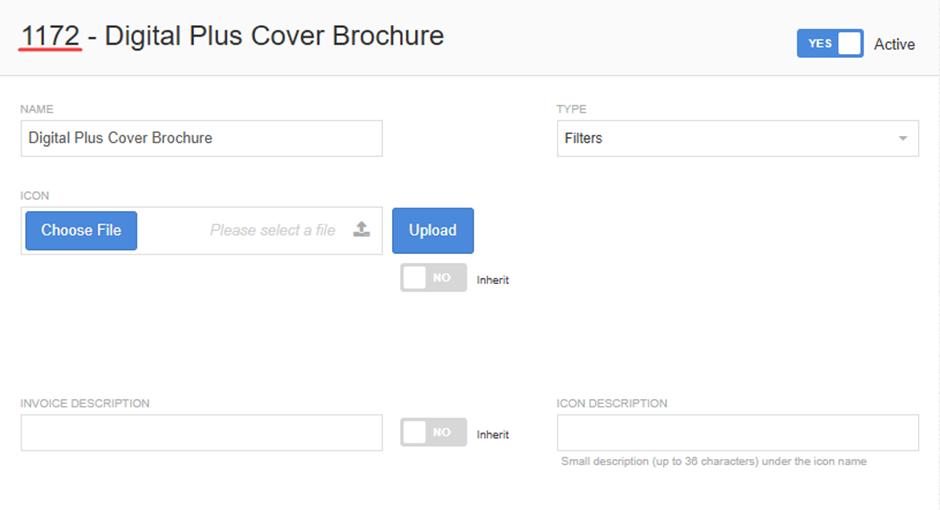

Each item will be given a unique IQ ID code when created, these items cannot be deleted once they are created only made inactive.

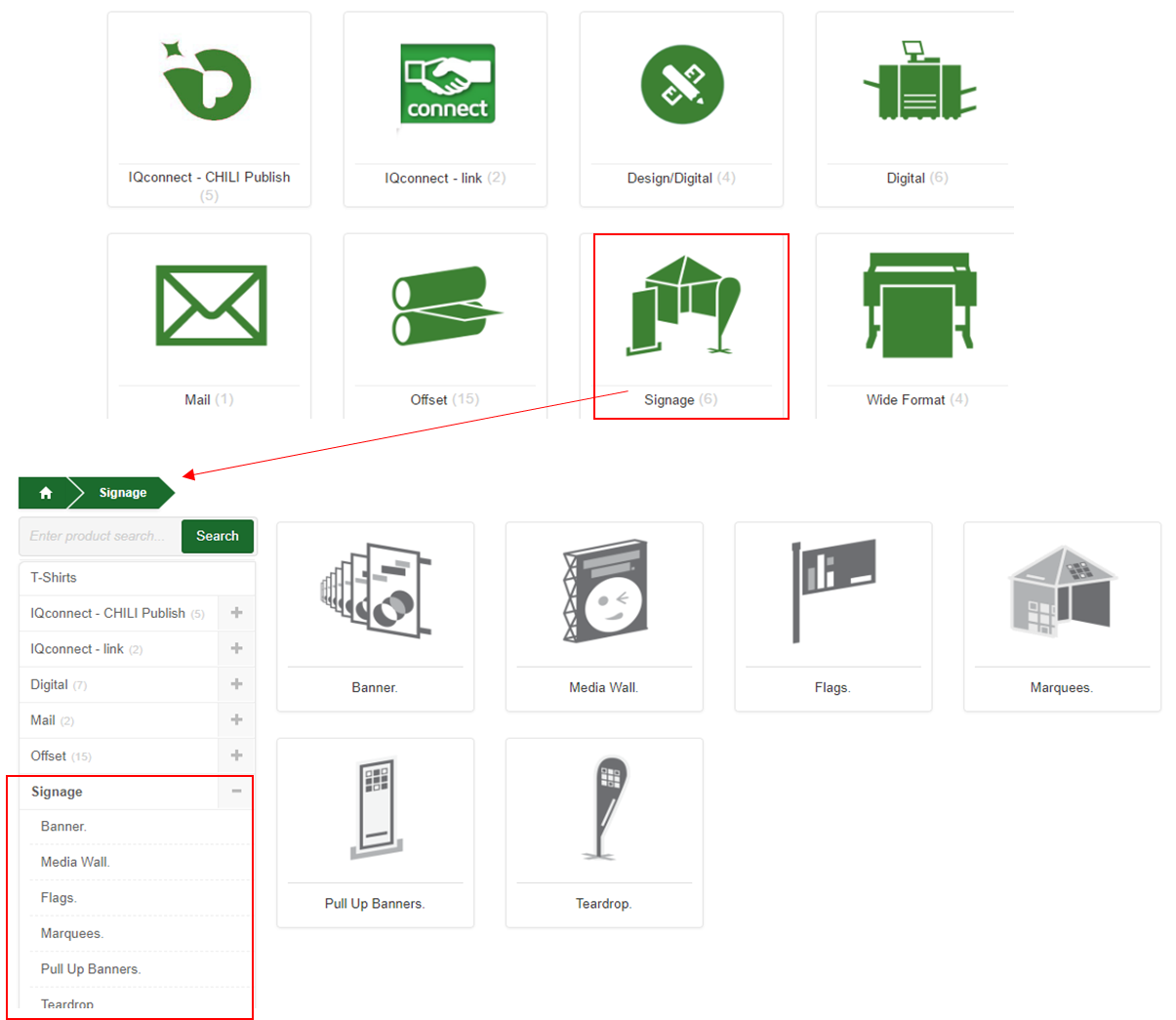

If you select the signage category by clicking the icon, it will show all the products within the signage category, whether they are a Parent Category as in Signage,
or a filter as in Banner they can have icons applied.

After choosing the Signage category the filters for those items and their icons show up.

 * Uploaded Icons should be .png files and maximum of 200x200px





Sub-categories

See this Knowledge Base article on sub-categories - https://printiq.zohodesk.com/portal/en/kb/articles/sub-categories
