Bindery Spoils - Digital Presses

BINDERY OVERS - DIGITAL PRESSES

BINDERY OVERS - DIGITAL PRESSES

With digital presses, the best way to handle overs for finishing operations is in the Admin->Configuration->Operations area.

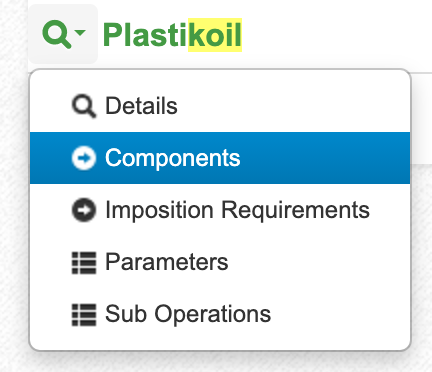

Using the magnifier - go to the component record:
Component Record

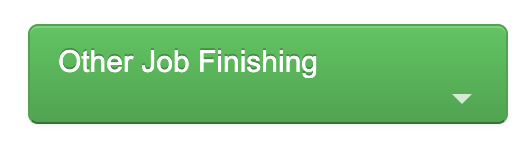

Other Job Finishing
Toggle down to the Paper Finishing Spoils
Paper Finishing Spoils

Paper Finishing Spoils

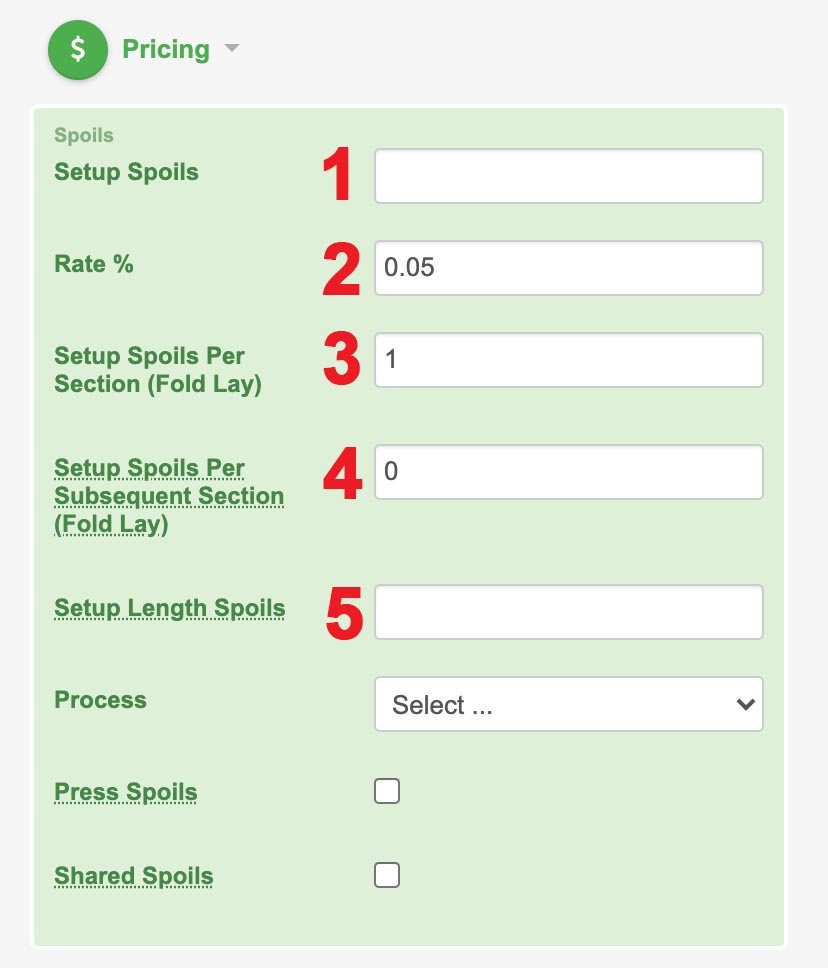

Finishing Spoils


1. Setup Spoils - For digital presses avoid using the setup spoils to calculate bindery overs. If you put in 10 sheets, this would give you 10 sheets per section on your quote. With digital we often have multiple pages in the same section. This calculation will not give you what you need if you are looking for 10 books for bindery overs. If the section has multiple pages you will only get 10 sheets regardless of the number of pages (fold-lays) in the section.

2. Rate % - This is for the running waste percent of your finishing equipment. This area is expressed as a percent. If you put in 5 it will calculate 5%. If you put in .05 it will calculate .05% which might be way less than you are looking for.

This is calculated on the sheets printed:
Number of leaves/ Number up = forms       (1 leaf = 2 pages; 2 Leaves = 4 Pages - they are front and back)
Number of Forms x quantity = number of sheets
sheets x % = bindery running waste
3. Setup spoils per section (fold lay) - This area you want to engage for digital printing (and conventional for that matter for certain bindings). If you put in the number 1 in this place, it would give you one complete book per. Remember, it is still looking at sheets:
Number of pages / Number up = forms
Number of Forms x Setup Spoils Per Section = number of setup spoil sheets
4. Setup spoils per subsequent section (fold lay) - It is vital to put a ZERO in this section to have it calculate correctly.

5. Setup length spoils - you can ignore this section for what you are doing.

Checking the Math

If you hit the + button on the job operation in the quote it will display the spoils it is generating:

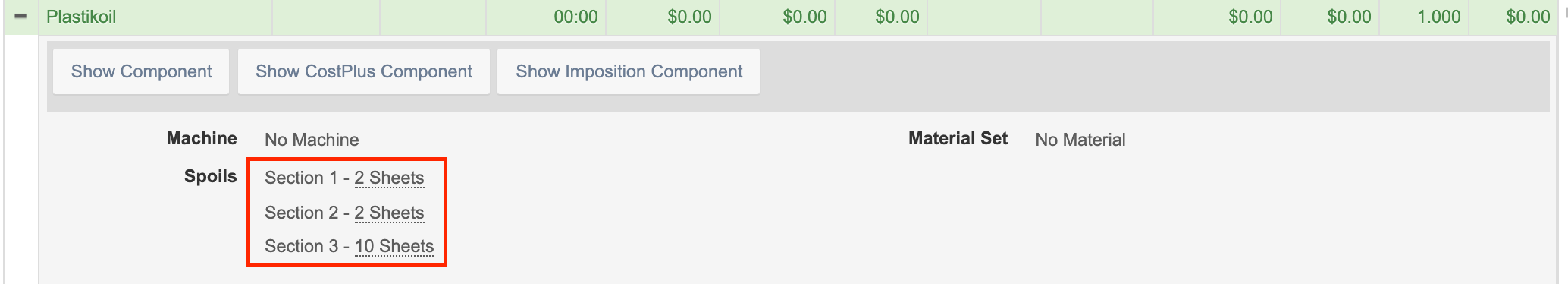

Component Finishing Spoils Calculation
If you click on one of these (in this example Section 3 - the 10 sheets) it will show you the breakdown:

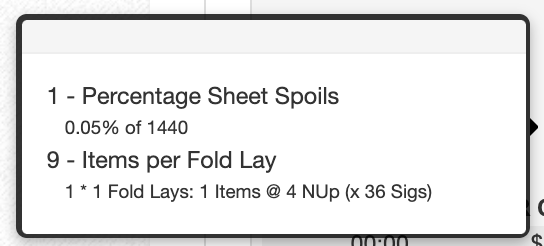

Spoils Breakdown


In this case there is one spoil that has come from the %, and there are 9 spoils that are being generated.

Formula:
Number of leaves / Number up = forms
Number of Forms x Setup Spoils Per Section = number of setup spoil sheets
The Math:
            In our example we have 72 pages (or 36 leaves)
            They are printed 4 up so this is 9 sheets
            1 makeready sheet per form = 9 sheets (x 4up = 36 leaves x 2 sides = 72 pages or one complete section)

When testing it is good to exaggerate so you can see what happens to the big numbers - so if we make a second book that is 400 pages on this third section, this is the result:

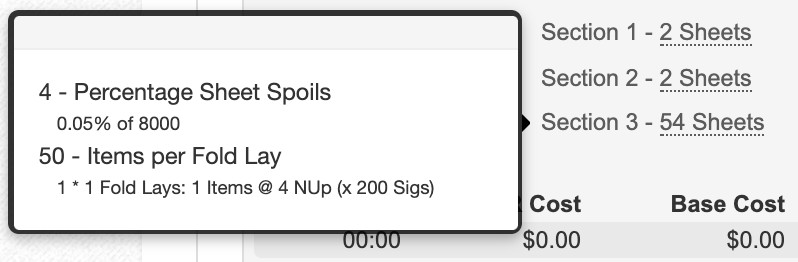

Exaggerated Example

The Math:
            In our example we have 400 pages (or 200 leaves)
            They are printed 4 up so this is 50 sheets
            1 makeready sheet per form = 50 sheets (x 4up = 200 leaves x 2 sides = 400 pages or one complete section)
            Add to this the 4 sheets for the waste % you get a total of 54 sheets.


This is the way we would recommend going Bindery overs for a digital press. It really speaks to how many full books you want to provide the perfect binder/coil binder as setup waste - which is usually what they are most interested in.
