API (SOAP) – Status Update

API (SOAP) – Status Update


Introduction

By referencing the Production Status ID’s, you may use SOAP calls to update a Job’s Production Status.

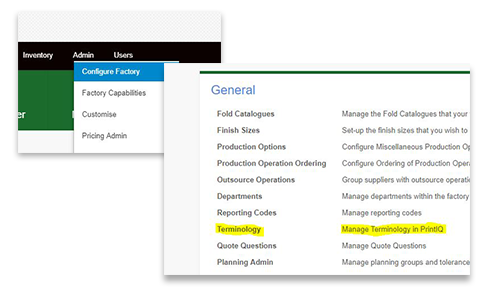

Production Statuses are located under Admin / Configure Factory / Terminology (under General).


Production Status ID's

The following table lists the unique ID’s for each Production Status.



Production Status

ID

PRODUCTION_STATUS_IN_PROCESS_1

2

PRODUCTION_STATUS_IN_PROCESS_2

3

PRODUCTION_STATUS_IN_PROCESS_3

4

PRODUCTION_STATUS_IN_PROCESS_4

5

PRODUCTION_STATUS_IN_PROCESS_5

6

PRODUCTION_STATUS_IN_PROCESS_6

7

PRODUCTION_STATUS_IN_PROCESS_7

8

PRODUCTION_STATUS_ON_HOLD

16

PRODUCTION_STATUS_CANCELLED

17

PRODUCTION_STATUS_FINISHED_PRODUCTION

20

PRODUCTION_STATUS_COMPLETE

21

PRE_PRODUCTION_STATUS_IN_PROCESS_1

22

PRE_PRODUCTION_STATUS_IN_PROCESS_2

23

PRE_PRODUCTION_STATUS_IN_PROCESS_3

24

PRE_PRODUCTION_STATUS_IN_PROCESS_4

18

PRE_PRODUCTION_STATUS_IN_PROCESS_5

1

PRE_PRODUCTION_STATUS_IN_PROCESS_6

26

PRODUCTION_STATUS_AWAITING_PAYMENT

25

PRODUCTION_STATUS_AWAITING_ARTWORK

27





As with other Production Integration API calls, you must reference the following Parameters

  • System
  • EventType
  • JobRef
  • FileRefs

Production Integration supported Systems

The following table lists the Systems and their Value





System

Value

Enfocus SWITCH

EnfocusSwitchScript

Kodak Prinergy Connect

prinergy

Esko Automation Engine

esko







CHANGE_STATUS EventType



The EventType Value to change a Jobs Production Status is “CHANGE_STATUS”. For the CHANGE_STATUS EvenType, SystemData parameter must also contain a Value. The Value corresponds to the ID for one of the above Production Status. The Value may be formatted as per below:


{“ProdStatusID”:<ID>}
Or
{“ProdStatusID”:1}


Where ‘1’ would adjust the Job’s Production Status to PRE_PRODUCTION_STATUS_IN_PROCESS_5.



JobRef and FileRefs


As with other Production Integration API calls, reference the applicable Job Number (JobRef) and File Name (FileRefs).
